Telefunken Operette 7

Telefunken Operette 7 01
Telefunken Operette 7 02
Telefunken Operette 7 03

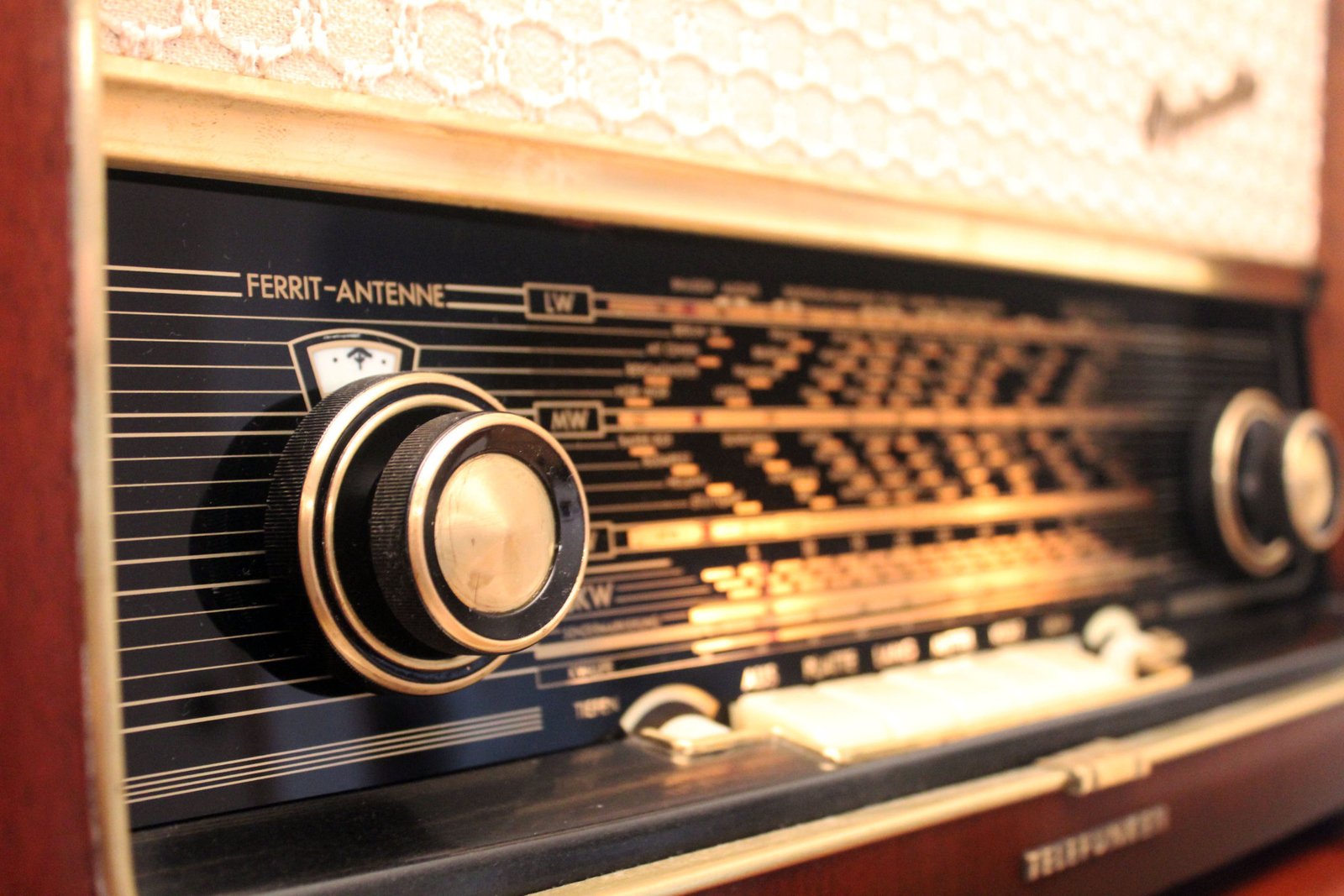

Telefunken Operette 7 04

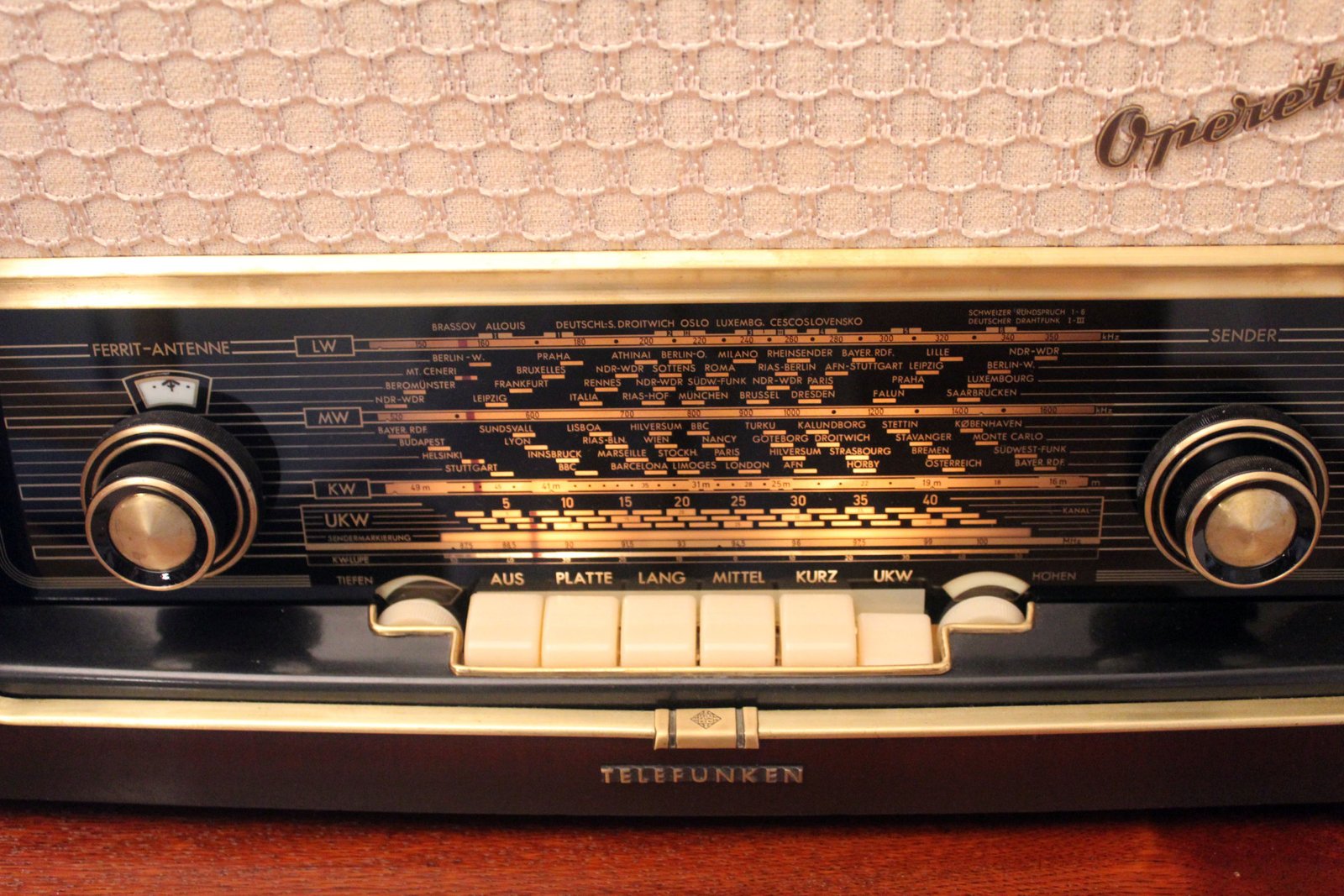

Telefunken Operette 7 05
Telefunken Operette 7 06
Telefunken Operette 7 07

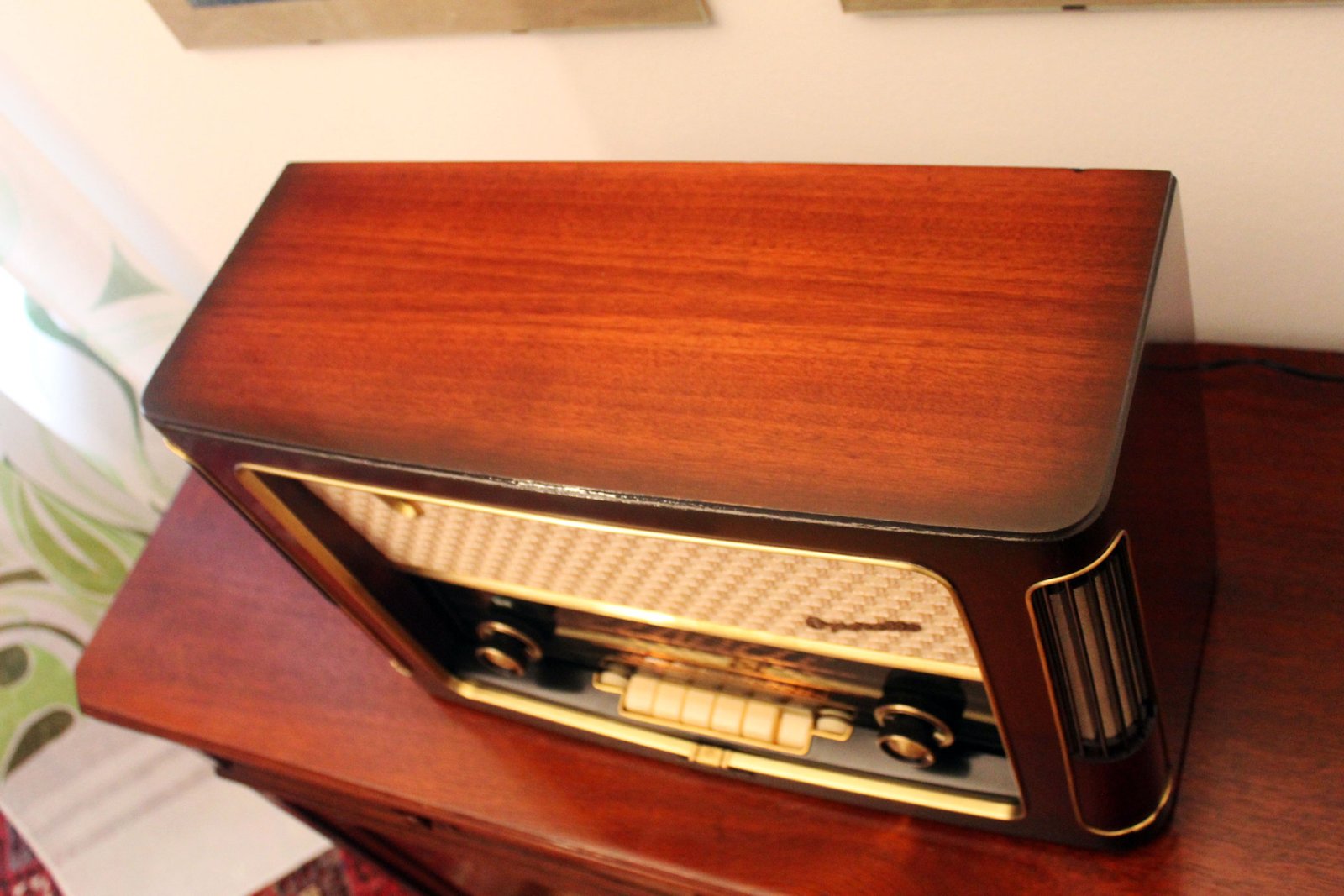

Telefunken Operette 7 08

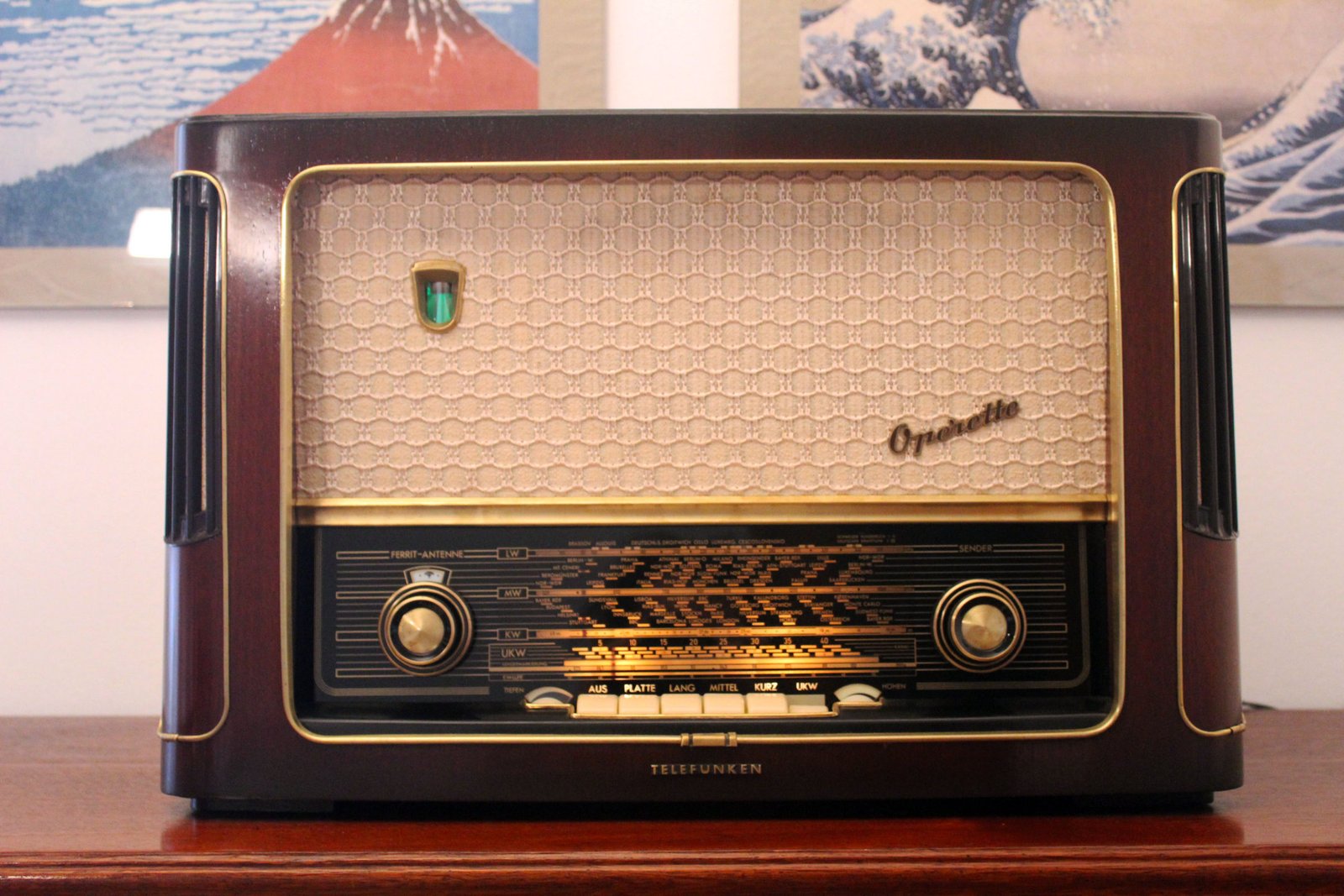

Telefunken Operette 7 09

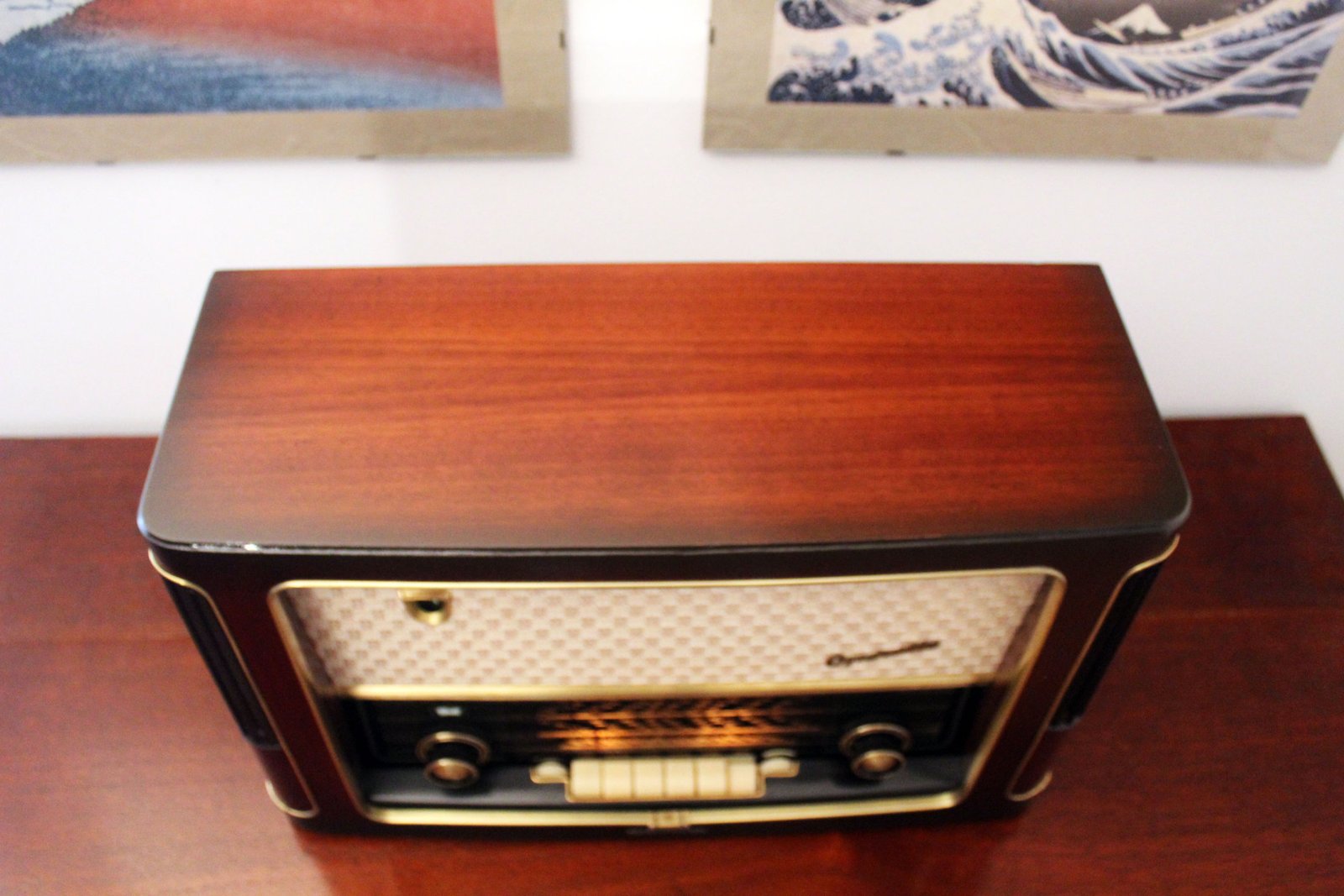

Telefunken Operette 7 10

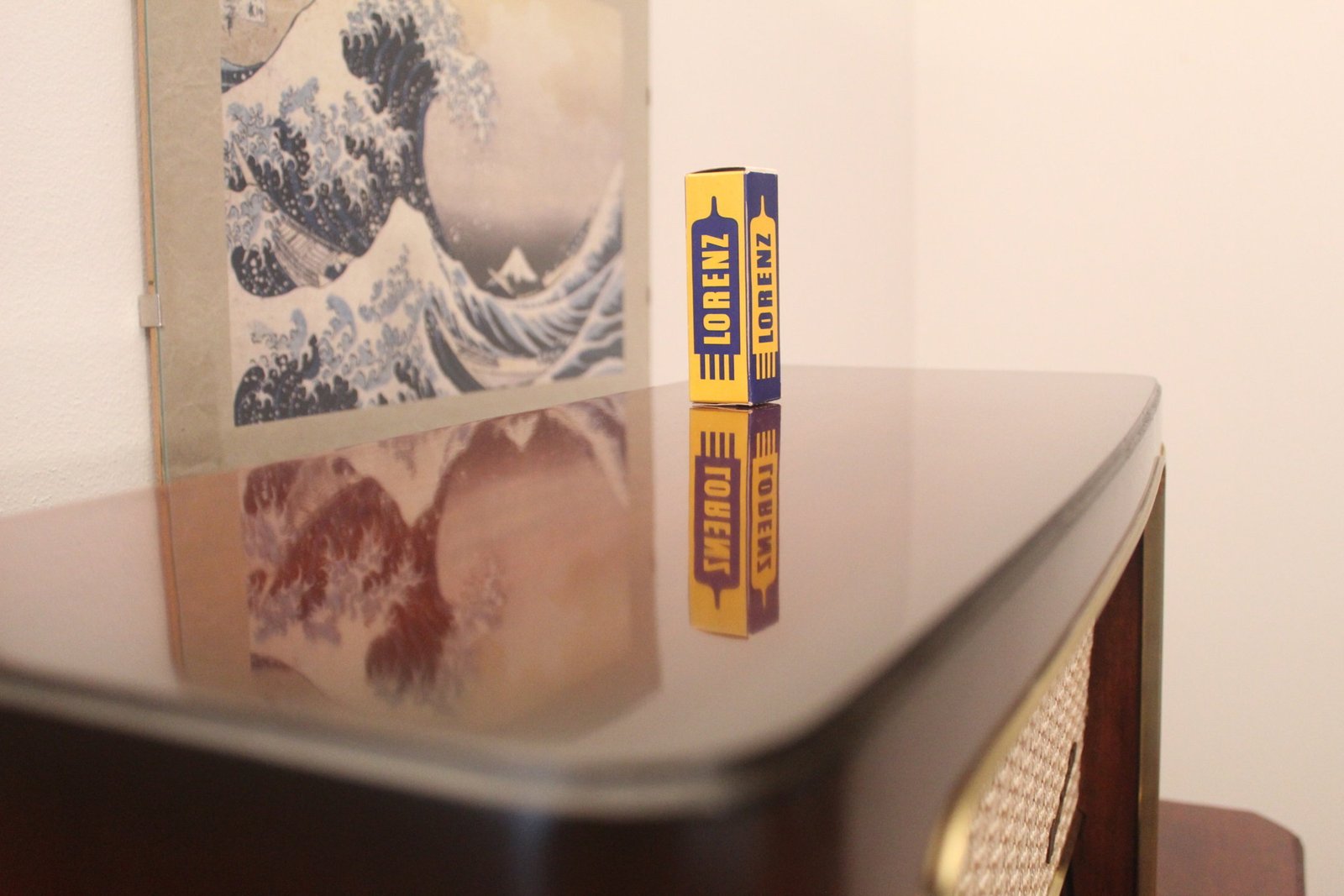

Telefunken Operette 7 11

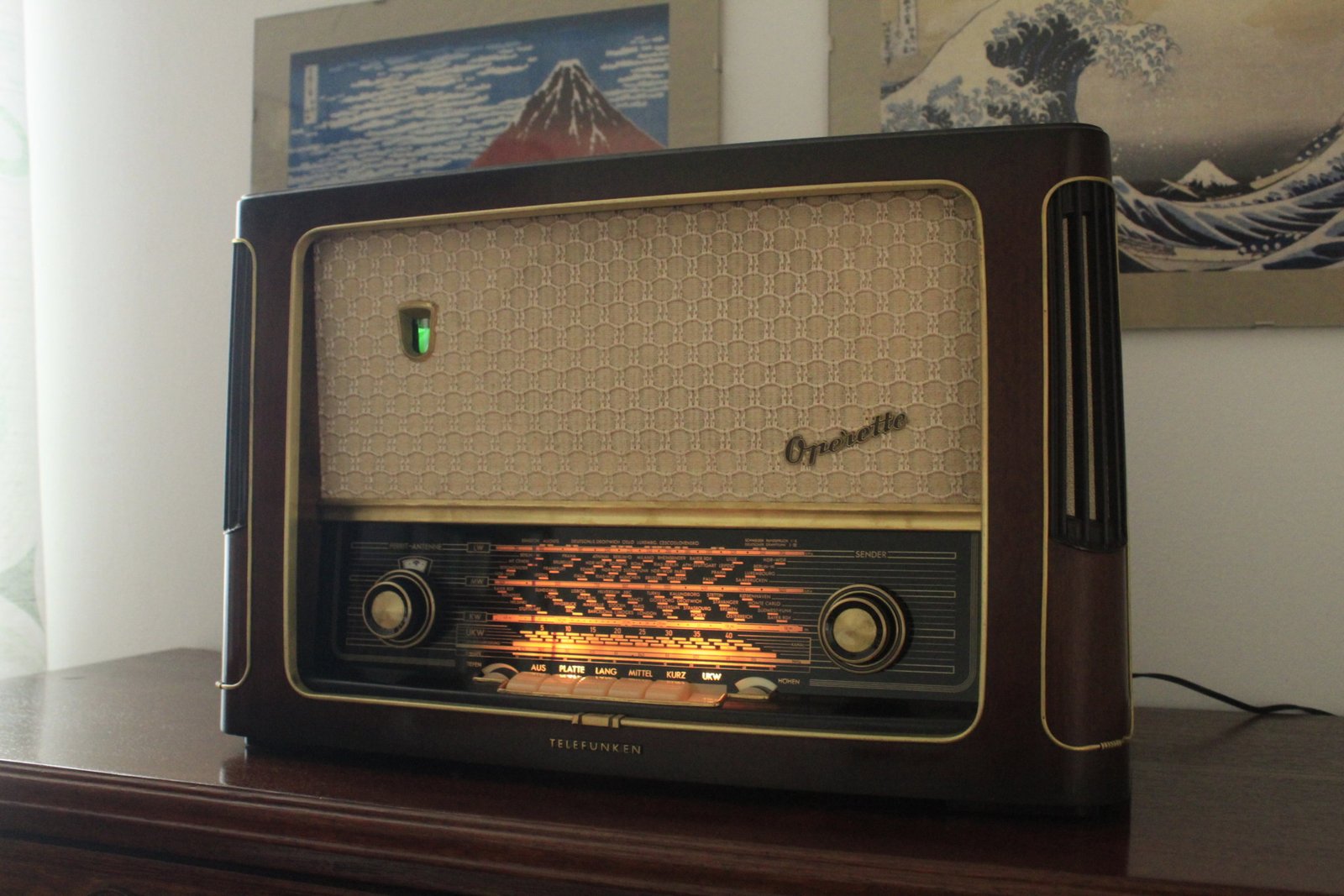

Telefunken Operette 7 12
Telefunken Operette 7 13
Telefunken Operette 7 14
Telefunken Operette 7 15

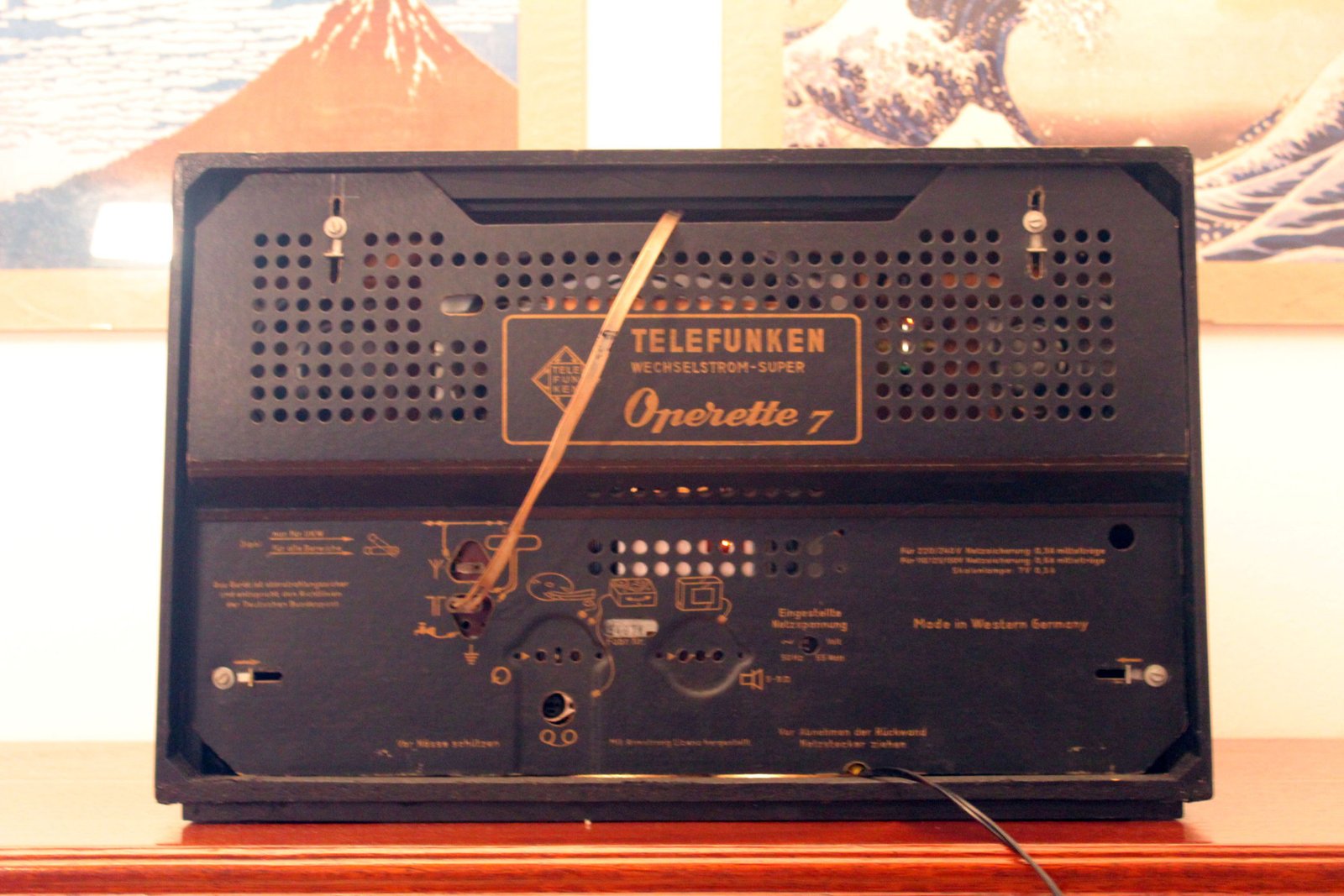

Telefunken Operette 7 16
Telefunken Operette 7 17
Telefunken Operette 7 18
Telefunken Operette 7 01 Telefunken Operette 7 02 Telefunken Operette 7 03 Telefunken Operette 7 04 Telefunken Operette 7 05 Telefunken Operette 7 06 Telefunken Operette 7 07 Telefunken Operette 7 08 Telefunken Operette 7 09 Telefunken Operette 7 10 Telefunken Operette 7 11 Telefunken Operette 7 12 Telefunken Operette 7 13 Telefunken Operette 7 14 Telefunken Operette 7 15 Telefunken Operette 7 16 Telefunken Operette 7 17 Telefunken Operette 7 18

Country:

Manufacturer/Brand:

Model:

Year:

Valves/Tubes:

Main Priciple:

Tuned Circuits:

Waves/Bands:

Power type and voltage:

Loudspeakers:

Power Output:

Material:

Shape:

Dimensions:

Wheight:

Price in first year of sale:

Notes:

Germany

Telefunken

Operette 7

1956/57

6: ECC85, ECH81, EF89, EABC80, EM80, EL84

Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz

6 AM circuit(s) 10 FM circuit(s)

LW, MW, SW, and FM

(AC) 110; 125; 150; 220; 240 volts

3

4 Watts

Wooden Case

Tablemodel with push buttons

570 x 360 x 240 mm / 22.4 x 14.2 x 9.4 inch

9.6 kg / 21 lb 2.3 oz (21.145 lb)

329.00 DM

KW-magnifying glass; rotatable ferrite antenna for MW / LW; Etching strip for FM station marker
Parallel type to the AEG 5066 WD.
