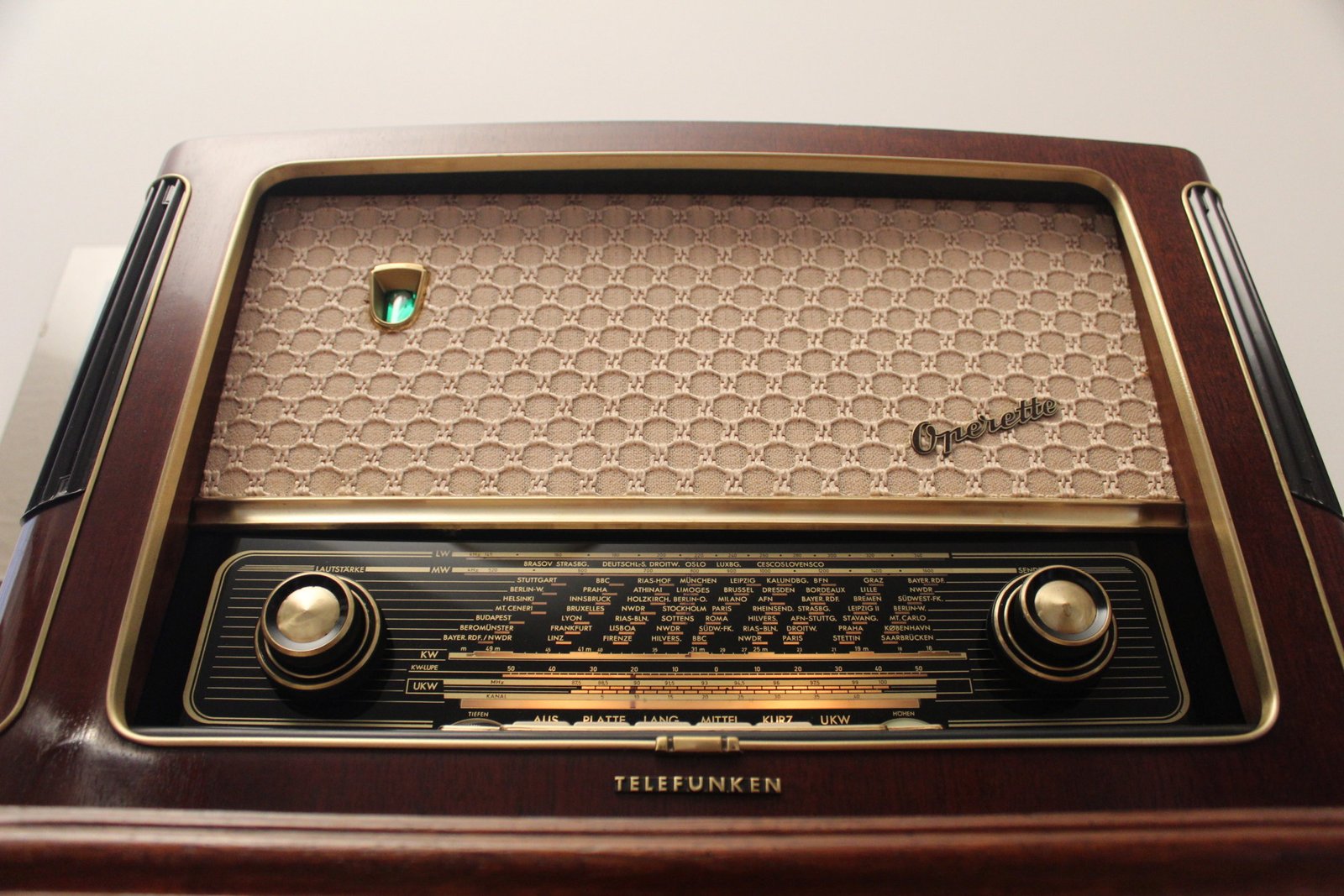

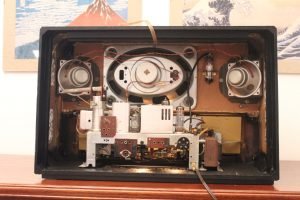

Telefunken Operette 6

Telefunken Operette 6b 01
Telefunken Operette 6b 02
Telefunken Operette 6b 03
Telefunken Operette 6b 04
Telefunken Operette 6b 05
Telefunken Operette 6b 06
Telefunken Operette 6b 07
Telefunken Operette 6b 08
Telefunken Operette 6b 09
Telefunken Operette 6b 10
Telefunken Operette 6b 11
Telefunken Operette 6b 12
Telefunken Operette 6b 13
Telefunken Operette 6b 14
Telefunken Operette 6b 15
Telefunken Operette 6b 16
Telefunken Operette 6b 17
Telefunken Operette 6b 18
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

Country:                                         Germany

Manufacturer:                              Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Year:                                               1955/1956

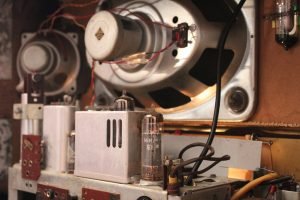

Valves / Tubes                               6: ECC85 ECH81 EF89 EABC80 EM80 EL84

Main principle                             Superheterodyne (common); ZF/IF 468/10700 kHz

Tuned circuits                               6 AM circuit(s) 9 FM circuit(s)

Wave bands                                    Broadcast, Long Wave, Short Wave plus FM

Power type and voltage             Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

Loudspeaker                               3 Loudspeakers   Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material                                          Wooden case

Shape                                                Tablemodel with Push Buttons

Dimensions (WHD)                    570 x 360 x 220 mm / 22.4 x 14.2 x 8.7 inch

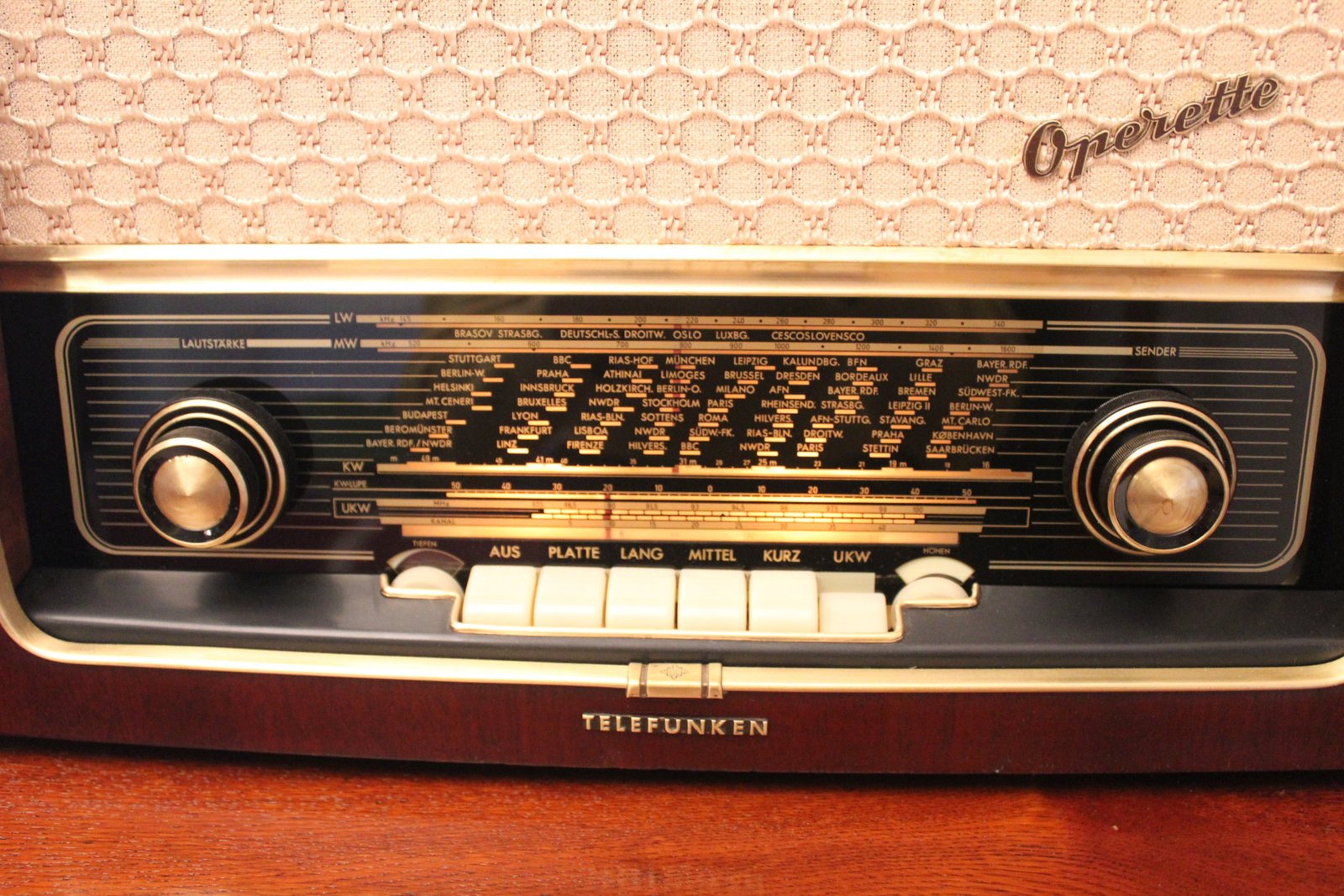

Notes:                                            FM scale with etching strips to mark the transmitters, KW magnifier.
FM 87.5-100 MHz, MW 515-1620 kHz, LW 150-320 kHz.
Chassis identical to AEG 4065WD.


Weight (2.2 lb = 1 kg)                  9.1 kg / 20 lb 0.7 oz (20.044 lb)

Price in first year of sale:         319.00 DM
