Country:                                         Germany

Manufacturer:                              Siemens; D (S.& Halske / S. Electrogeräte)

Year:                                                1954/1955

Valves / Tubes                               7: EF80 EC92 ECH81 EF89 EM80 EABC80 EL84

Main principle                             Superheterodyne (common); ZF/IF 468/10700 kHz

Tuned circuits                               6 AM circuit(s) 9 FM circuit(s)

Wave bands                                    Broadcast, Long Wave, Short Wave plus FM

Power type and voltage             Alternating Current supply (AC) / 110; 125; 220; 250 Volt

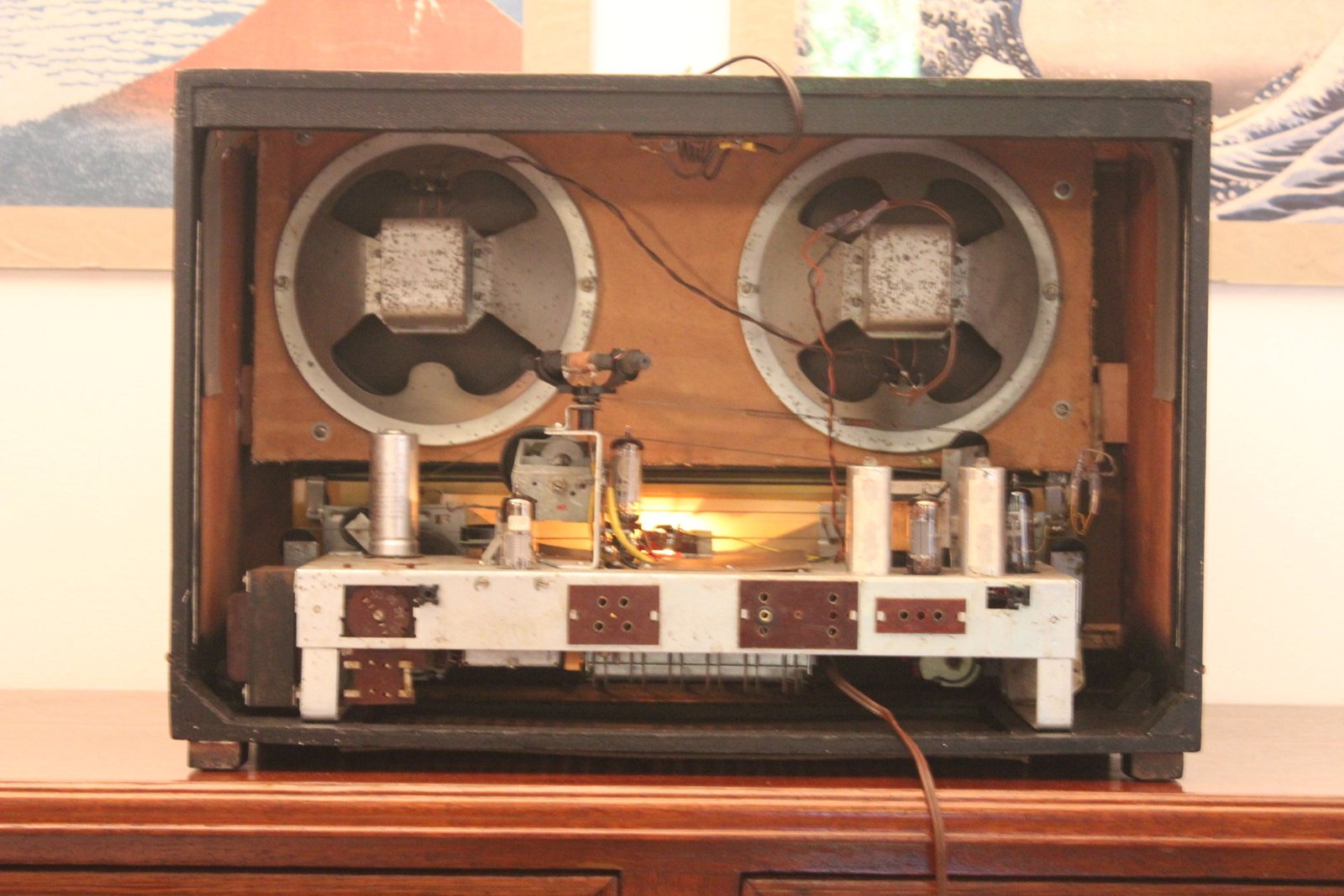

Loudspeaker                                2 Loudspeakers / Ø 20 cm = 7.9 inch   Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material                                          Wooden case

Shape                                                Tablemodel with Push Buttons

Dimensions (WHD)                    580 x 395 x 300 mm / 22.8 x 15.6 x 11.8 inch

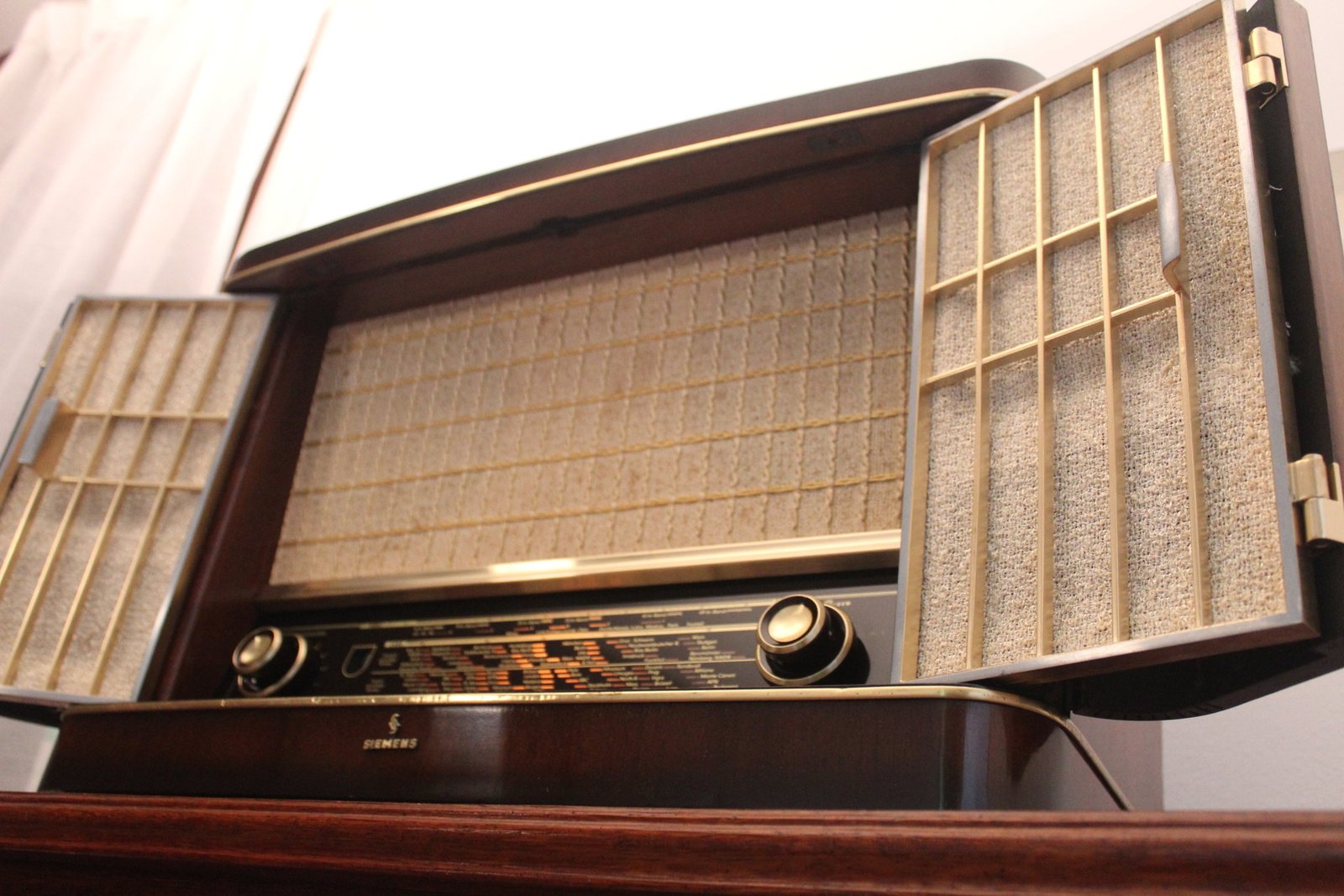

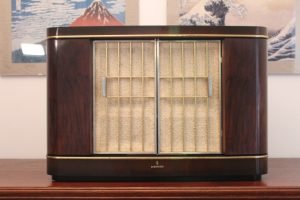

Notes:                                            Casket device that can be locked with doors, local transmitter button for FM, separate tuning for FM and AM areas, rotatable and switchable ferrite antenna for MW

Weight (2.2 lb = 1 kg)                  14 kg / 30 lb 13.4 oz (30.837 lb)

Price in first year of sale:         399.00 DM
