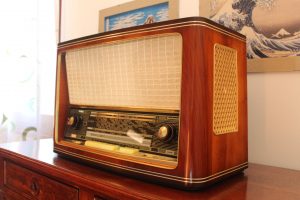

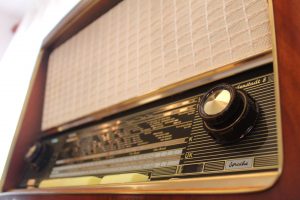

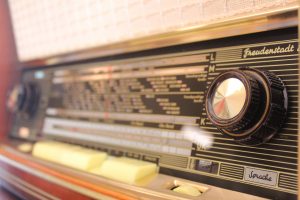

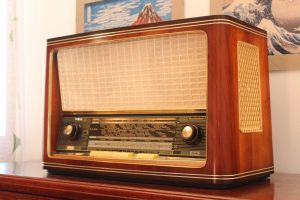

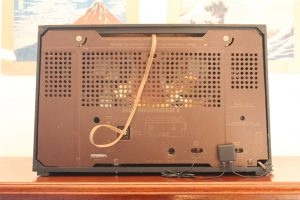

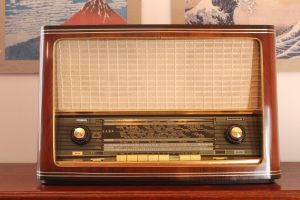

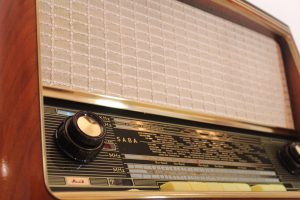

Saba Freudenstadt 8

Saba Freudenstadt 8 01
Saba Freudenstadt 8 02
Saba Freudenstadt 8 03
Saba Freudenstadt 8 04
Saba Freudenstadt 8 05
Saba Freudenstadt 8 06
Saba Freudenstadt 8 07
Saba Freudenstadt 8 08
Saba Freudenstadt 8 09
Saba Freudenstadt 8 10
Saba Freudenstadt 8 12
Saba Freudenstadt 8 11
Saba Freudenstadt 8 13
Saba Freudenstadt 8 14
Saba Freudenstadt 8 15
Saba Freudenstadt 8 16
Saba Freudenstadt 8 17
Saba Freudenstadt 8 18
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

Country:                                           Germany

Manufacturer / Brand:                 SABA; Villingen

Year:                                                  1957–1959

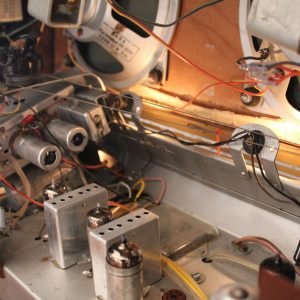

Valves / Tubes                                 7: EC92 EC92 ECH81 EBF89 EM84 EABC80 EL84

Main principle                                 Super-Heterodyne (Super in general); ZF/IF 460/6750 kHz; 2 AF stage(s)

Tuned circuits                                 6 AM circuit(s)     9 FM circuit(s)

Wave bands                                     Broadcast, Long Wave, Short Wave plus FM.

Power type and voltage               Alternating Current supply (AC) / 110; 130; 155; 185; 220 Volt

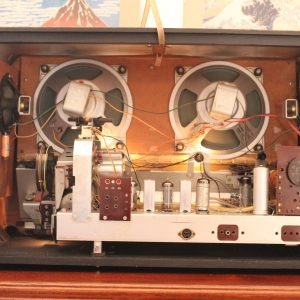

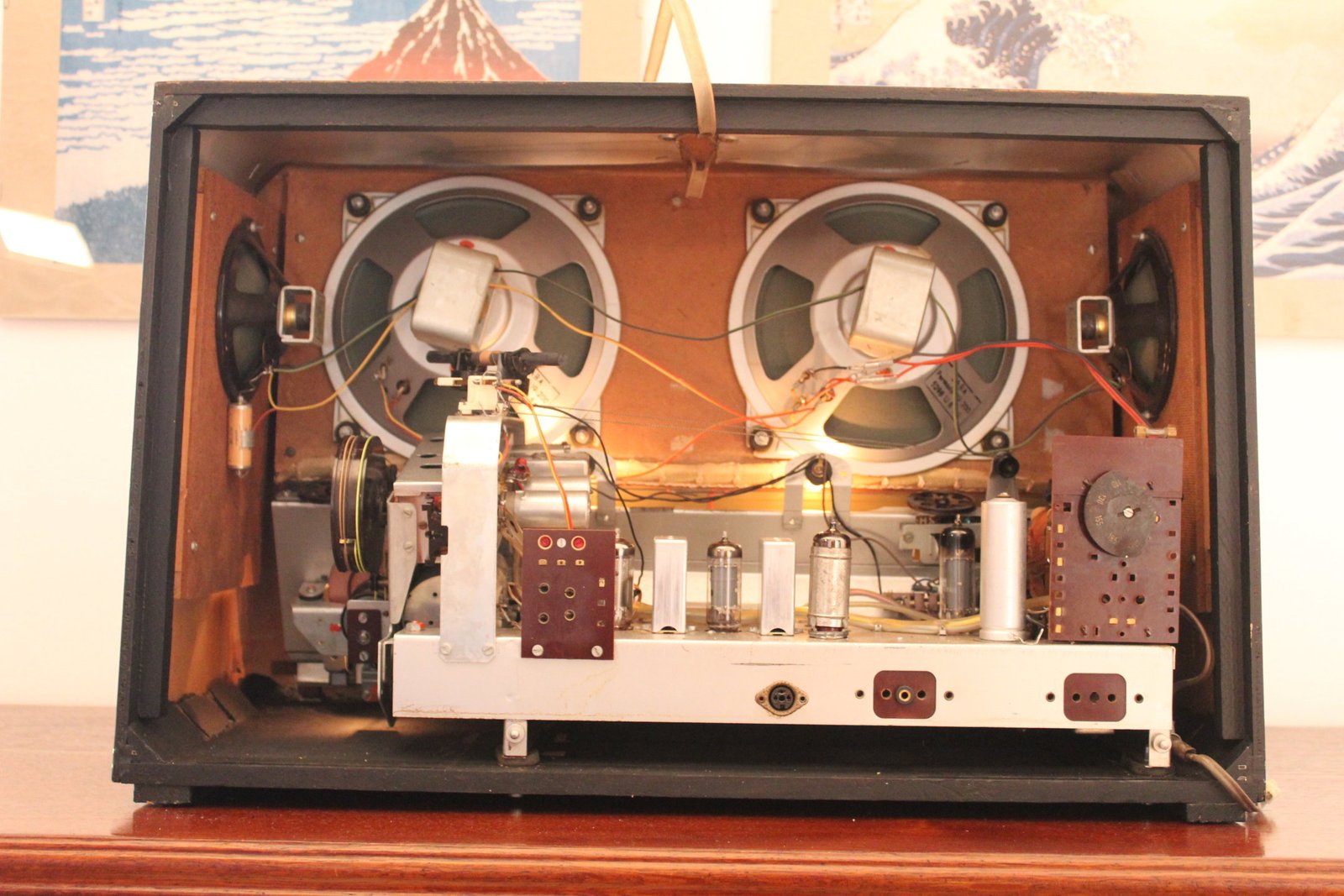

Loudspeaker                                    4 Loudspeakers

Power output                                  4 W

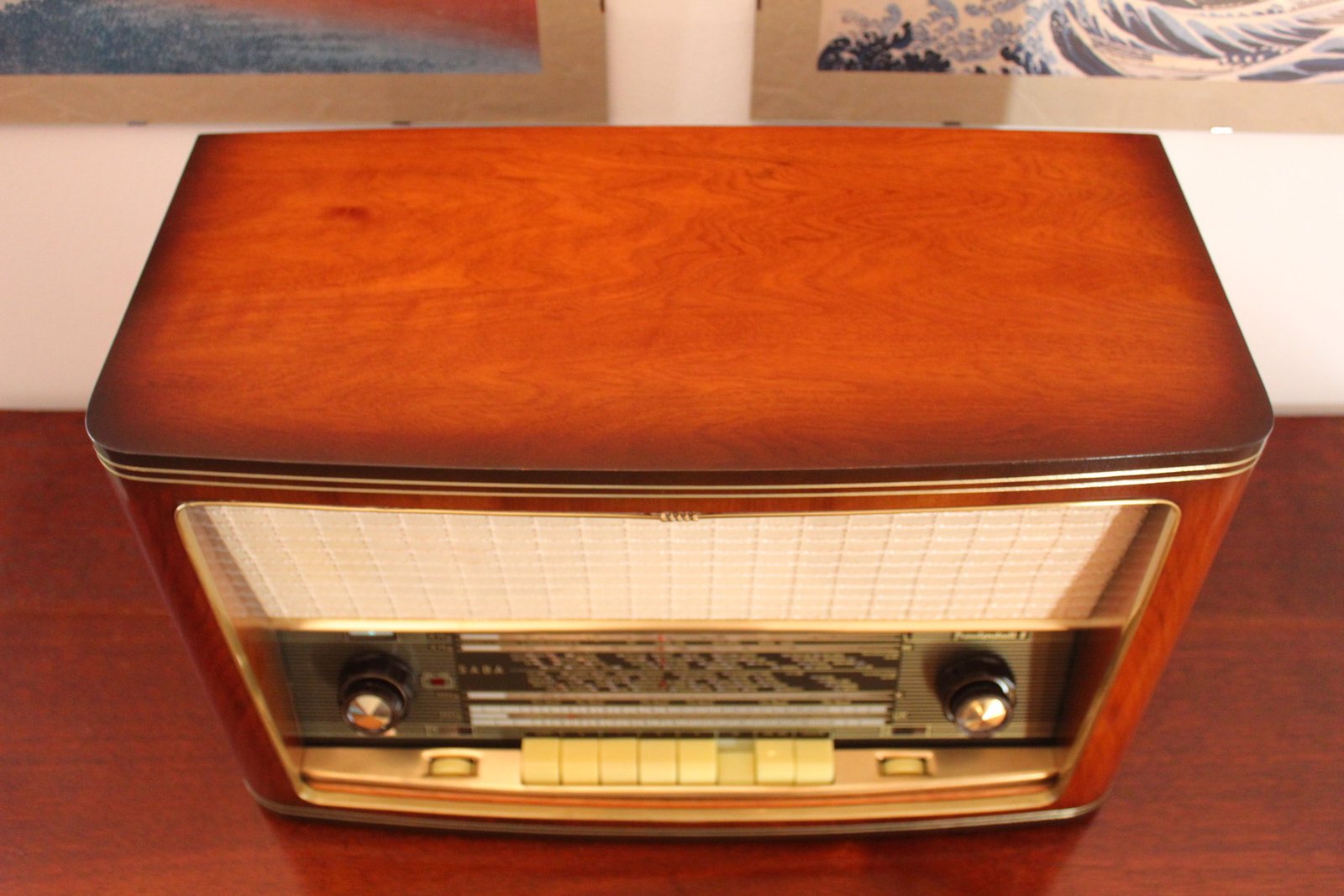

Material                                            Wooden case

Shape                                               Tablemodel with Push Buttons.

Dimensions (WHD)                        615 x 390 x 280 mm / 24.2 x 15.4 x 11 inch

Net weight (2.2 lb = 1 kg)            14.3 kg / 31 lb 8 oz (31.498 lb)

Price in first year of sale              409.00 DM

Notes                                                Turnable AM Ferrite Antenna;

                                                           Tone control knobs for high and bass;

                                                           Input socket to connect external audio source as turntable, CD player, iPod..
