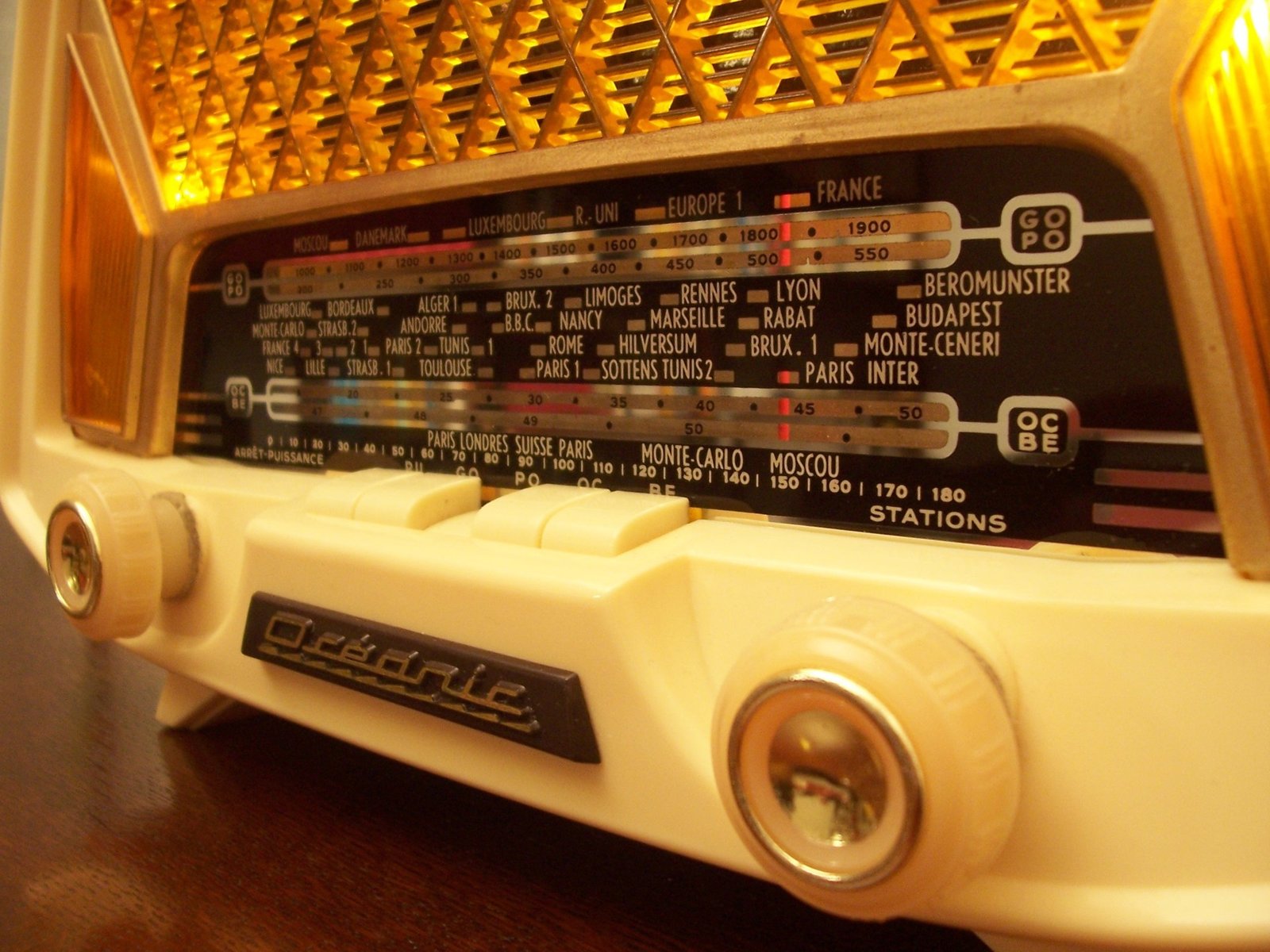

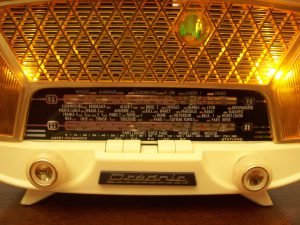

Oceanic Pirate 59

Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

Country:

Manufacturer/Brand:

Model:

Year:

Valves/Tubes:

Main Priciple:

Tuned Circuits:

Waves/Bands:

Power type and voltage:

Loudspeakers:

Power Output:

Material:

Shape:

Dimensions:

Wheight:

Price in first year of sale:

Notes:

France

Océanic, ITT Océanic; Paris

Pirate 59

1959

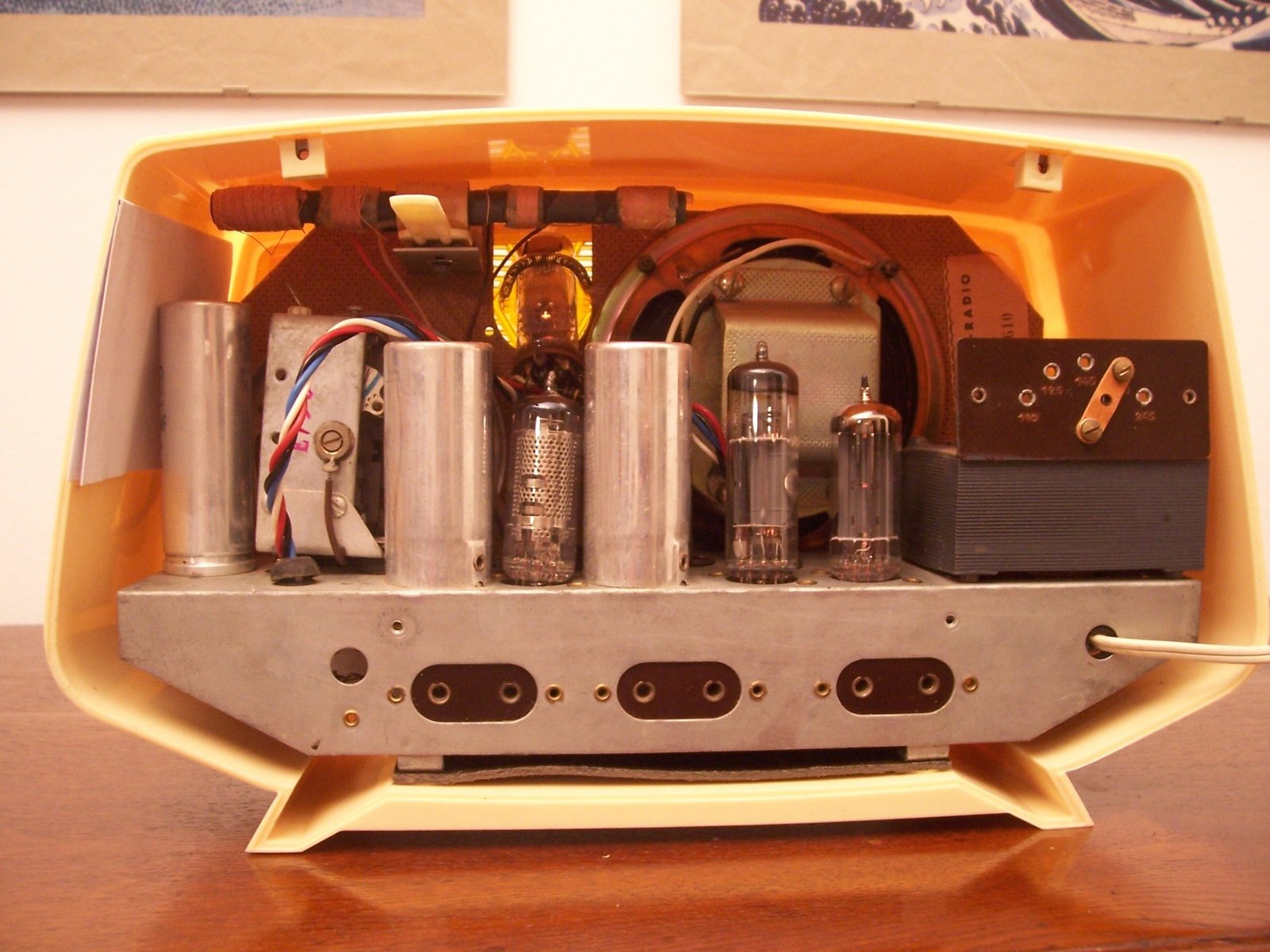

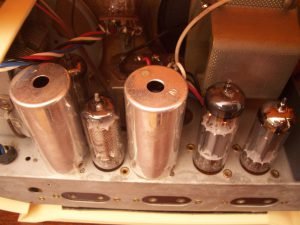

5: ECH81, EBF80, ECL82, EZ80, EM81

Super-Heterodyne (Super in general); ZF/IF 480 kHz; 2 AF stage(s)

6 AM circuit(s)

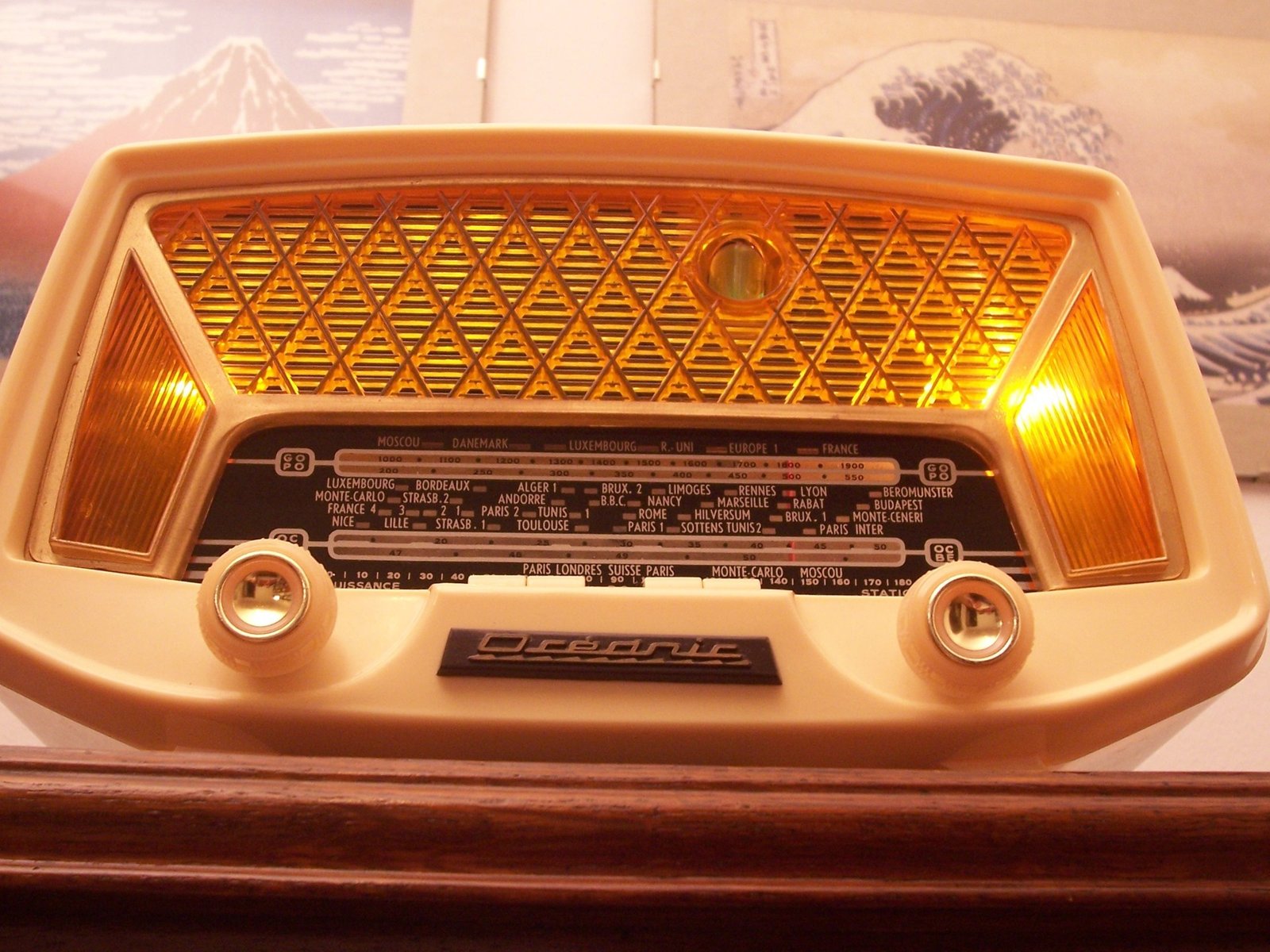

Broadcast, Long Wave and 2 x Short Wave

Alternating Current supply (AC) / 110-240 Volt

Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

Modern plastics (no Bakelite or Catalin)

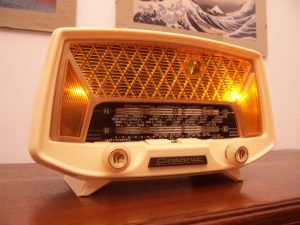

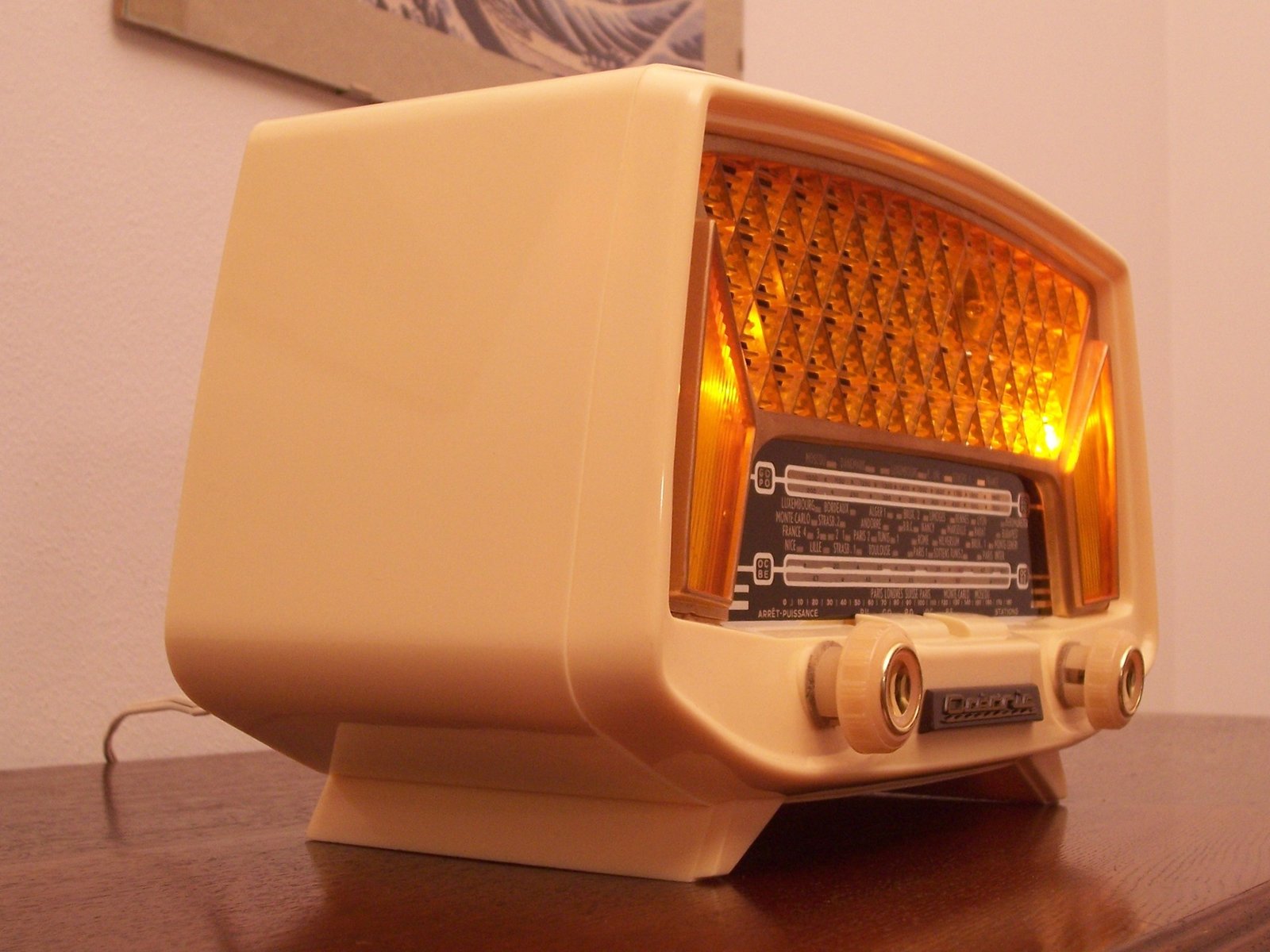

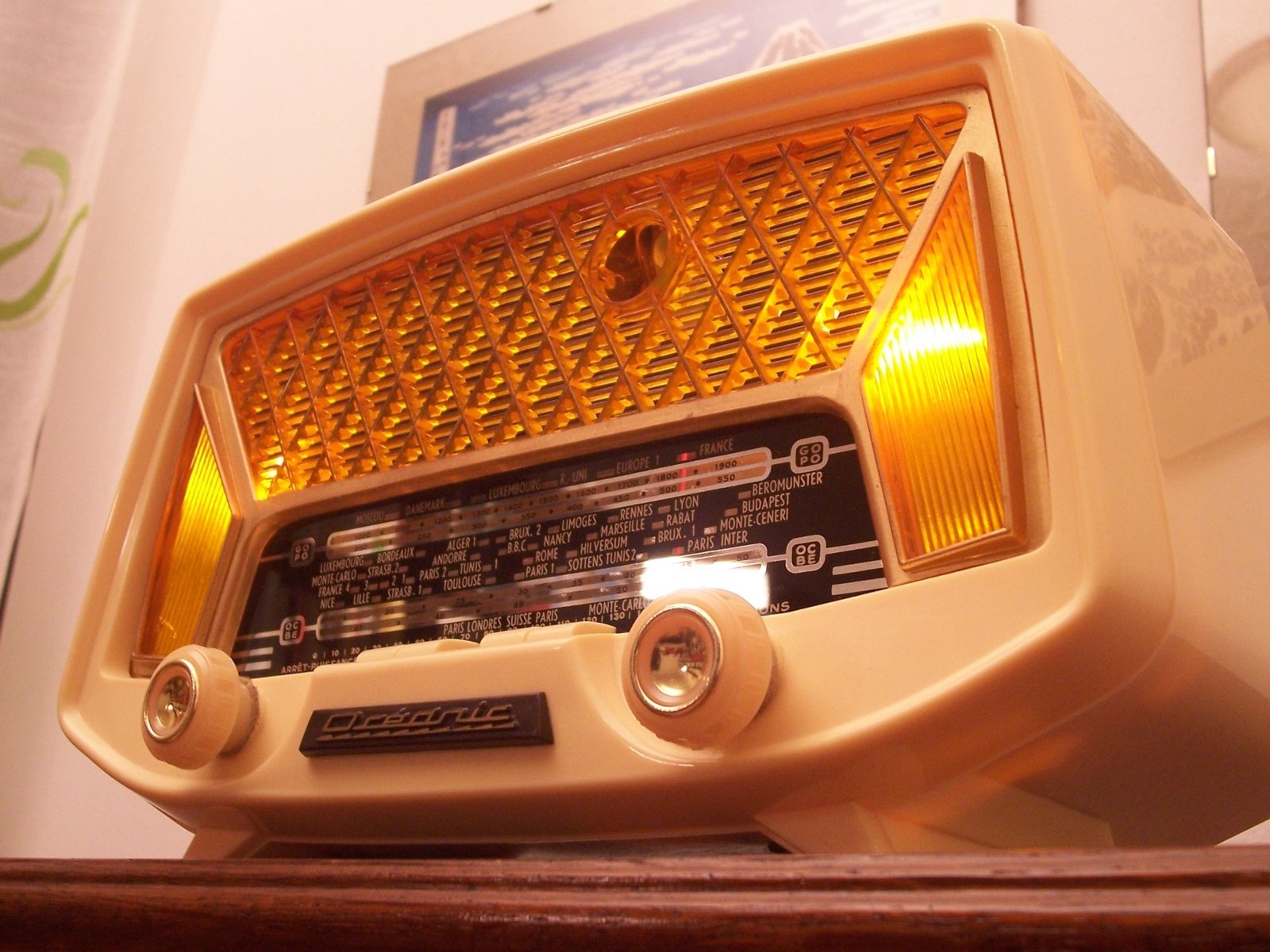

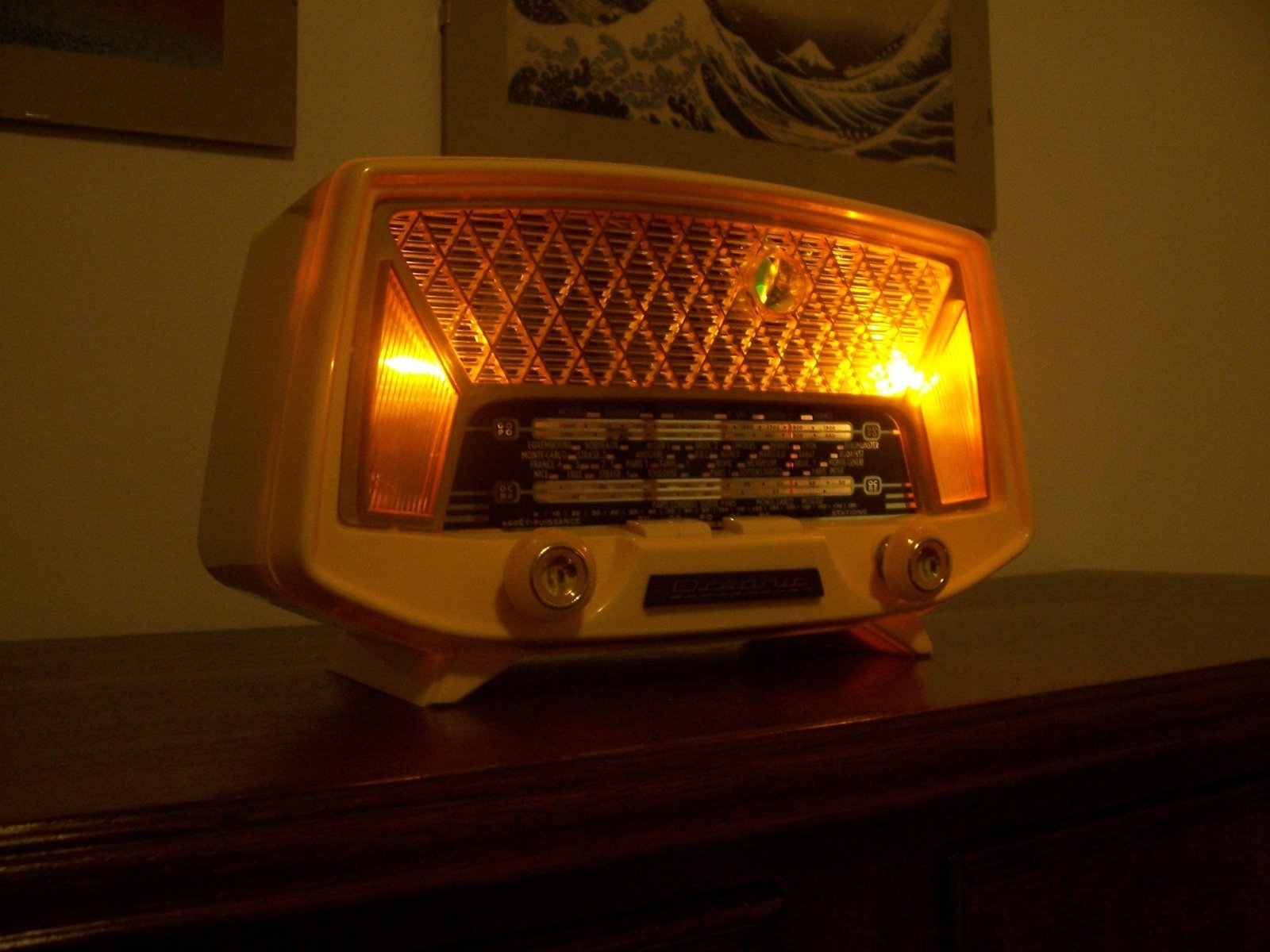

Tablemodel with Push Buttons.

340 x 200 x 160 mm / 13.4 x 7.9 x 6.3 inch

4.5 kg / 9 lb 14.6 oz (9.912 lb)

23’650.00 FRF

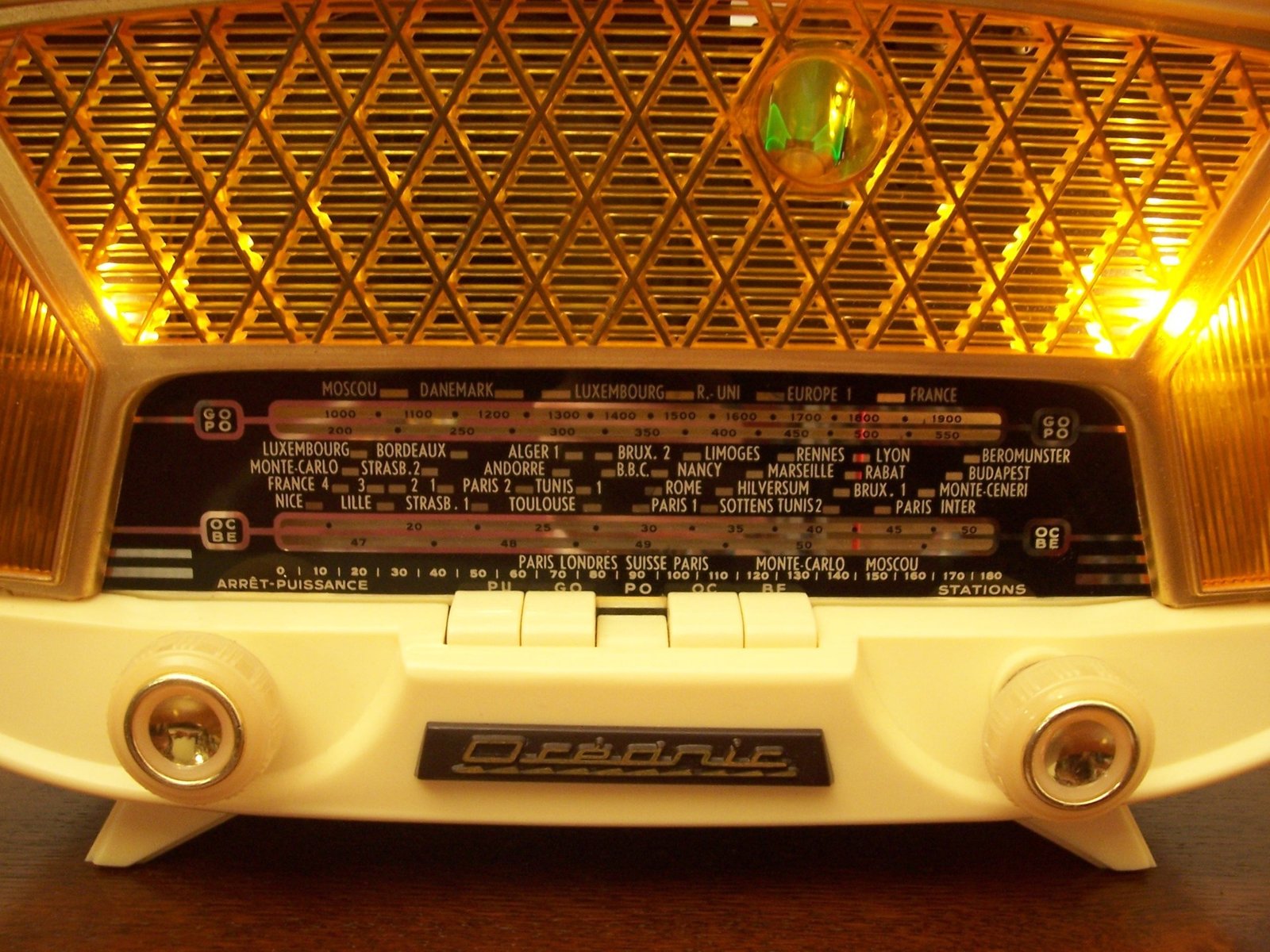

4 ranges of waves including 1 band spread. Keyboard 5 keys. Built-in PO-GO ferrite frame.
This model has the same appearance as the Pirate of 1958, but replaces the magic eye EM34 of an EM81. It is followed by the Pirate II model with a more modern design.
