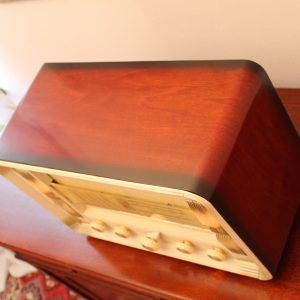

General Radio K61 08
General Radio K61 09
General Radio K61 10
General Radio K61 11

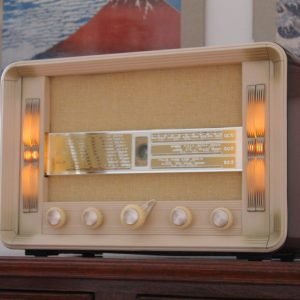

General Radio K61 12
General Radio K61 13
General Radio K61 14
General Radio K61 15
General Radio K61 16
General Radio K61 17
General Radio K61 18
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

Country:                                         France

Manufacturer / Brand:              General Radio; Dijon

Year:                                                1952

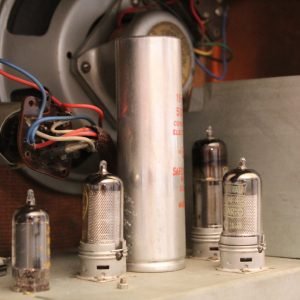

Valves / Tubes                               6: 6BA6, ECH42 EAF42 EM34 EL41 GZ81

Main principle                              Super-Heterodyne (Super in general); ZF/IF 455 kHz;

Tuned circuits

Wave bands                                    Broadcast, Long Wave and 2 x Short Wave.

Power type and voltage             Alternating Current supply (AC) / 115-245 Volt

Loudspeaker                                  Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

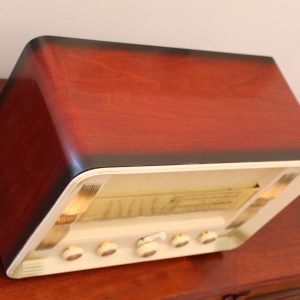

Material                                          Wooden case

Shape                                                Tablemodel with knobs

Dimensions (WHD)                    470 X 300 X 210 mm / 18,5 X 11,8 X 8,3 inch.

Notes                                                4 wave bands: SW from 6 to 18.4 Mc, MW from 520 to 1620 Kc, LW from 155 to 325 Kc,

                                                           and BE (spread band) from 5.84 to 6.4 Mc (49 mEtres).

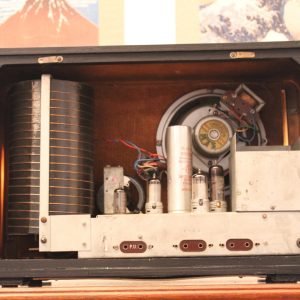

                                                           Cylindrical frame antenna integrated into the radio.



Weight (2.2 lb = 1 kg)
