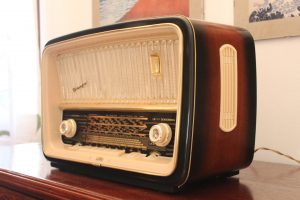

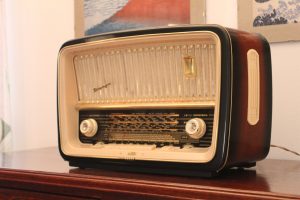

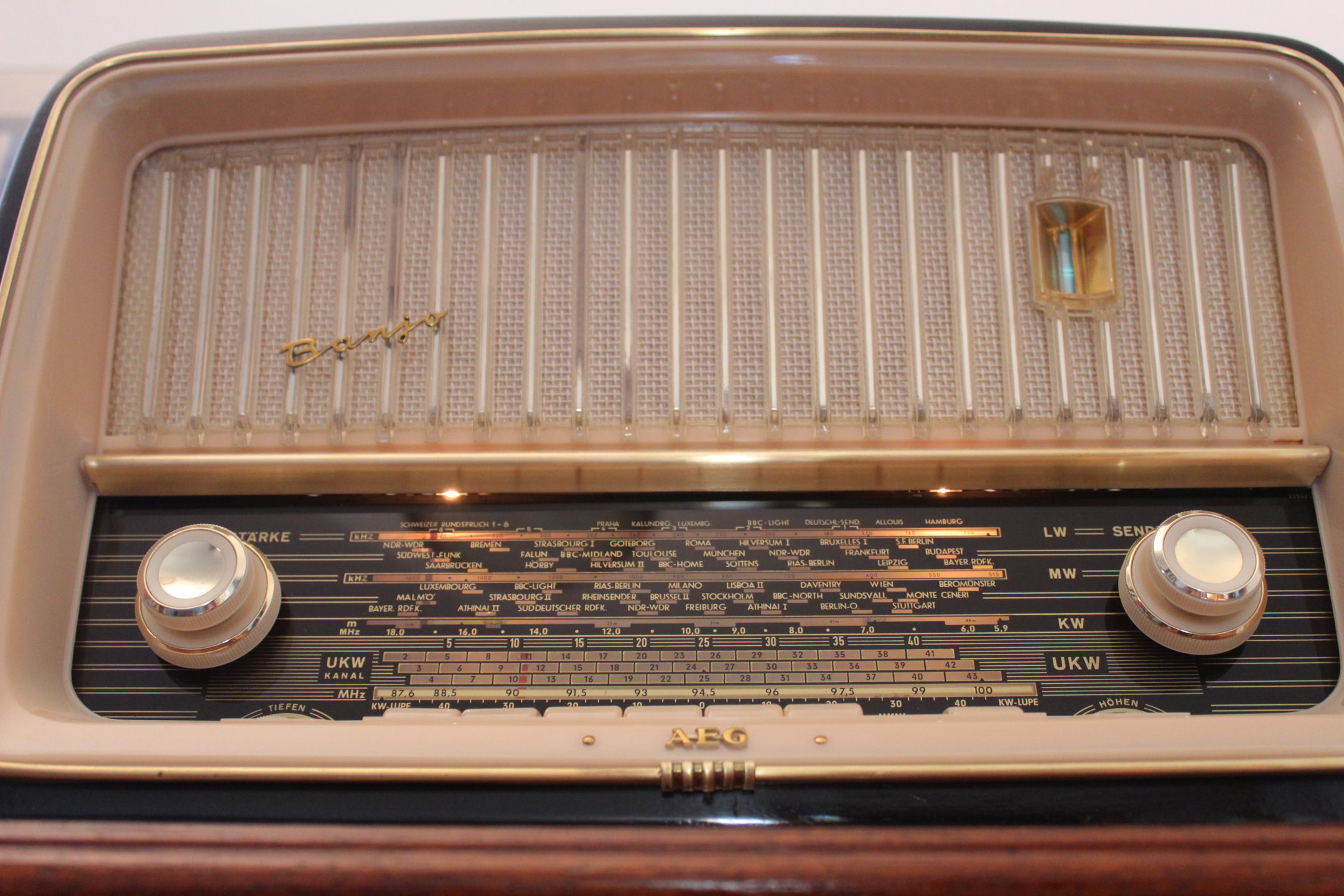

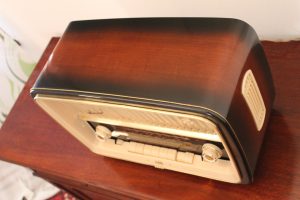

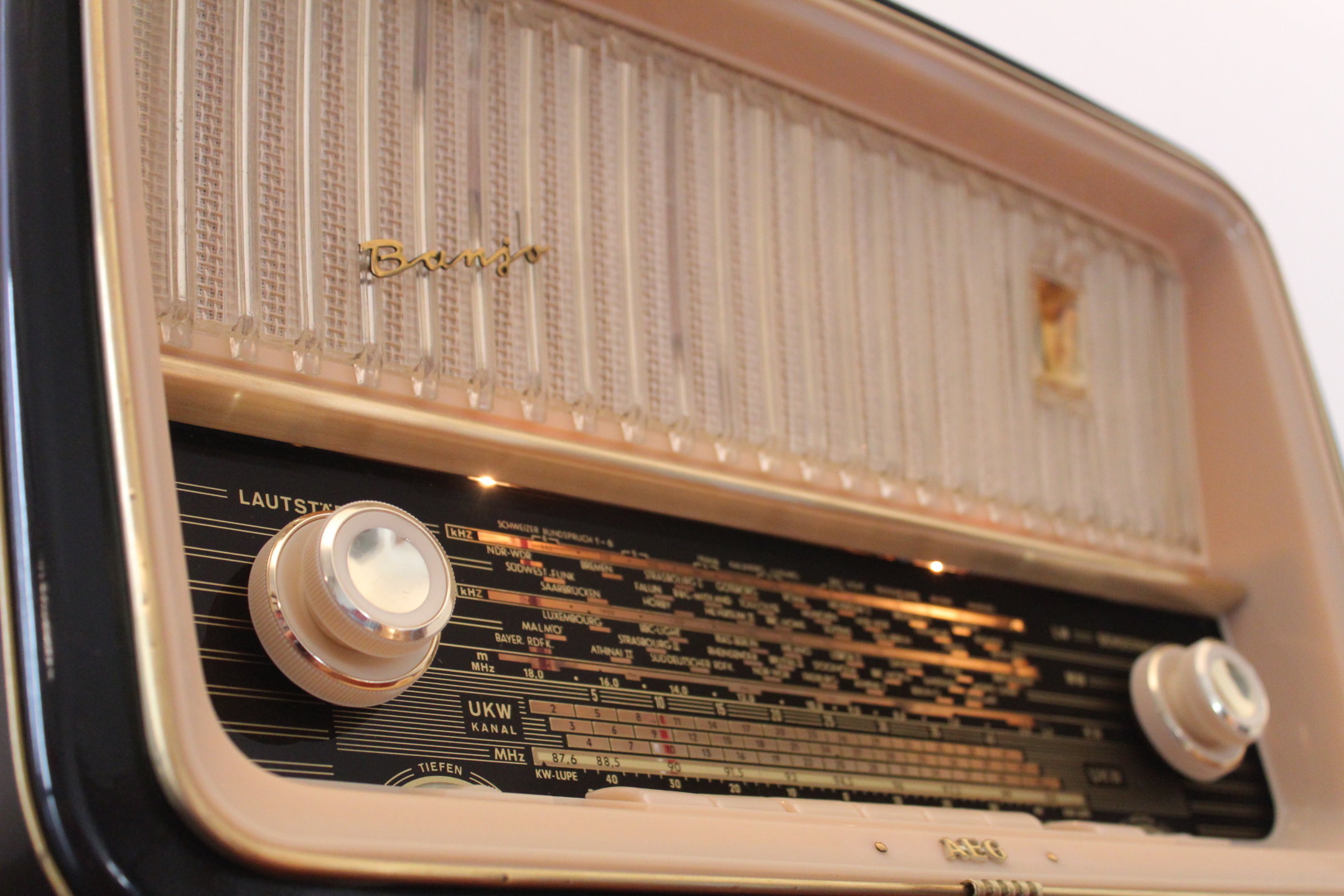

AEG Banjo 61

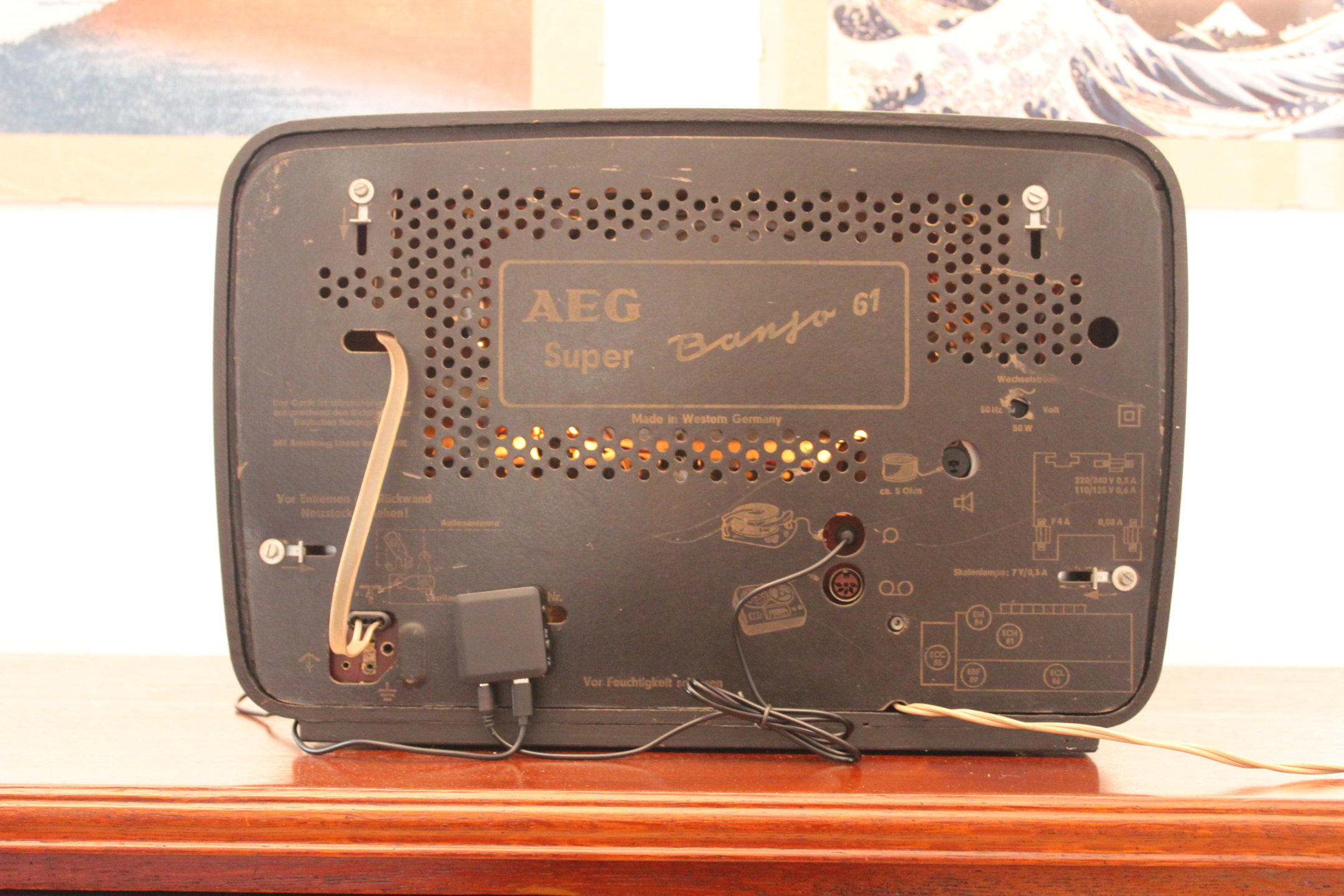

Bluetooth 5.0 receiver unit installed and ready to play!

AEG Banjo 61
AEG Banjo 61

Country:                                         Germany

Manufacturer:                              AEG (Radios) Allg.Elektricitäts-Ges.

Year:                                               1605/1961

Valves / Tubes                               5: ECC85 ECH81 EBF89 EM84 ECL86

Main principle                             Superheterodyne (common); ZF/IF 468/10700 kHz

Tuned circuits                               6 AM circuit(s) 10 FM circuit(s)

Wave bands                                    Broadcast, Long Wave, Short Wave plus FM

Power type and voltage             Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

Loudspeaker                                 3 Loudspeakers

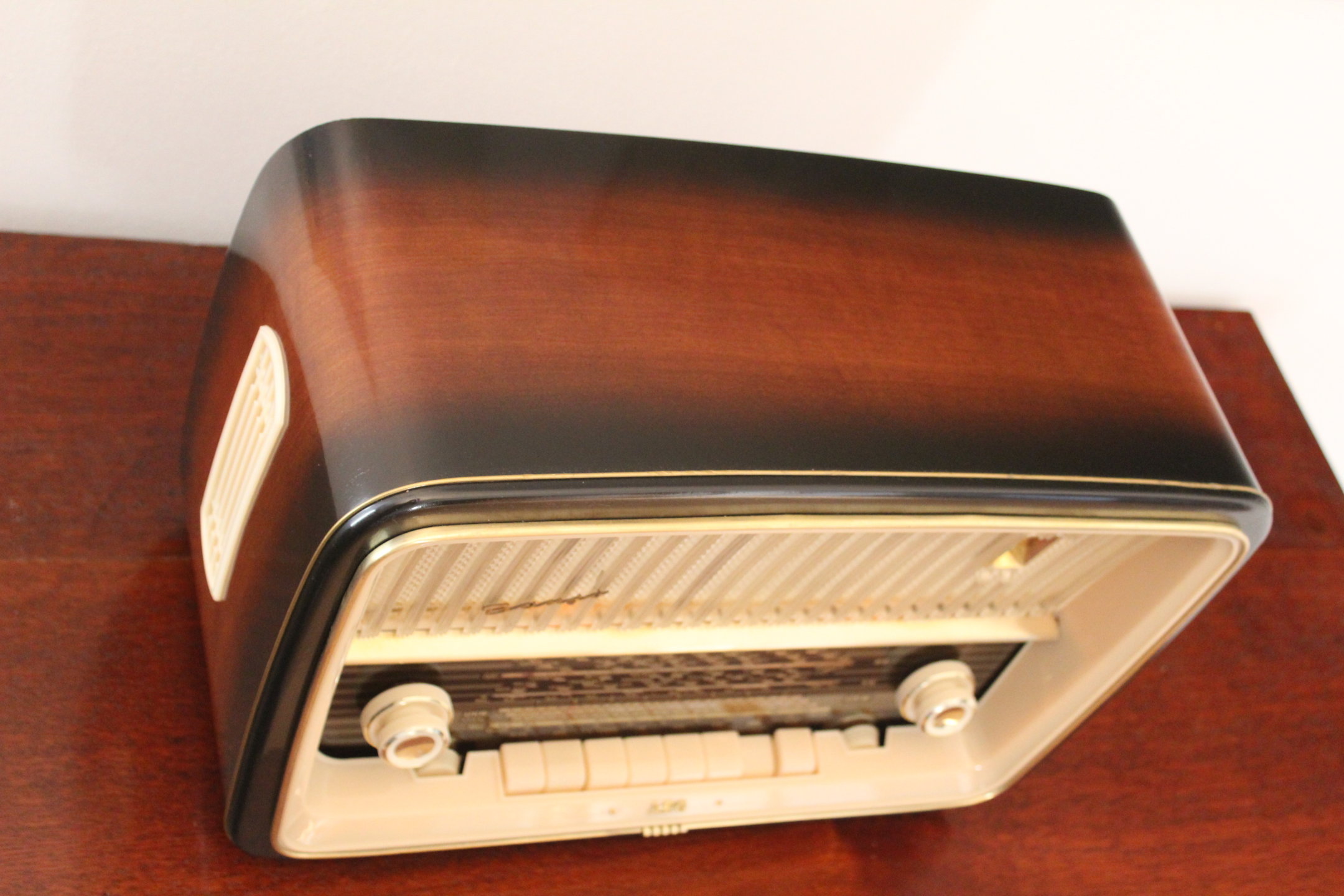

Material                                          Wooden case

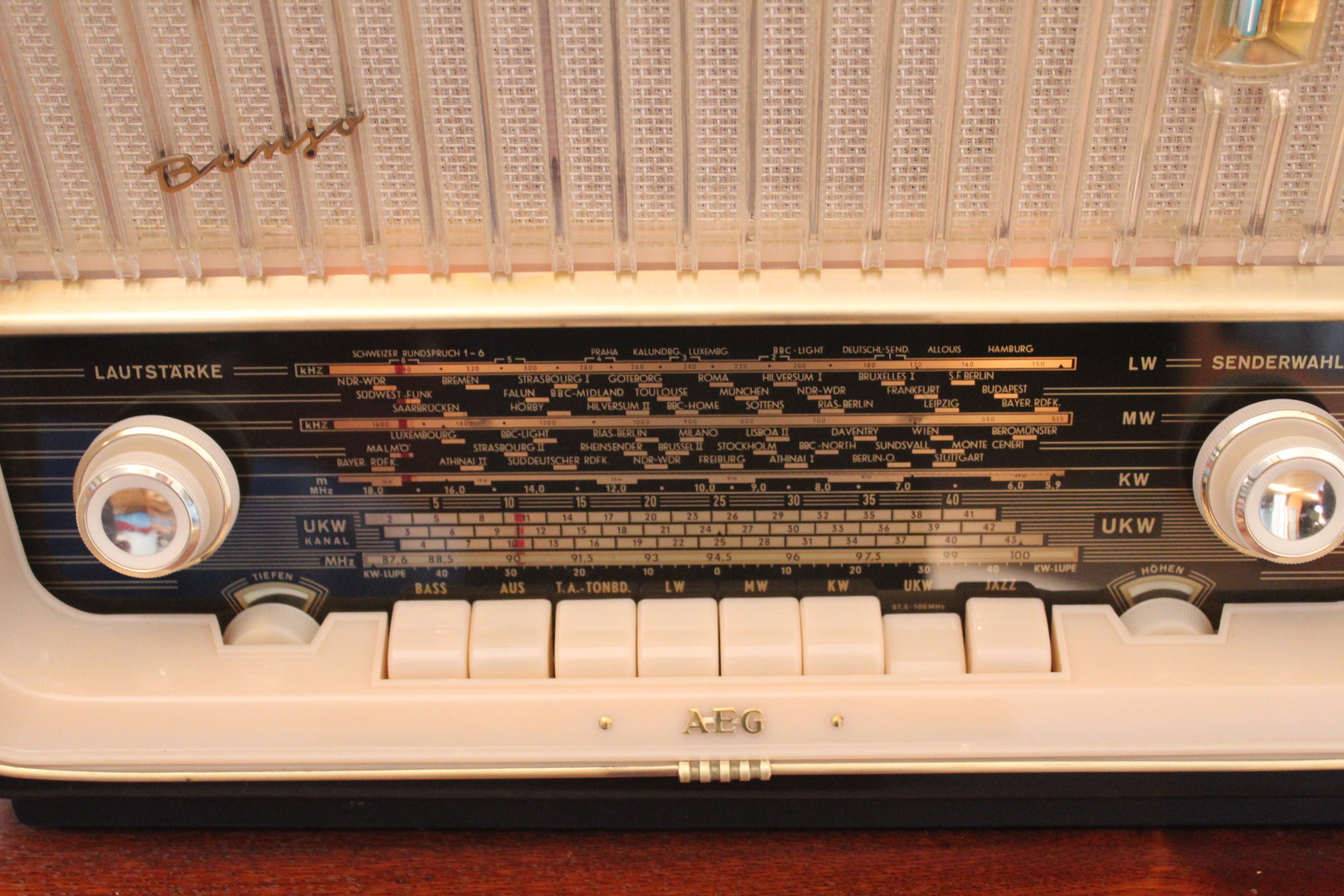

Shape                                                Tablemodel with Push Buttons

Dimensions (WHD)                    460 x 305 x 225 mm / 18.1 x 12 x 8.9 inch

Notes:                                            Parallel type as Telefunken Gavotte 1253; 3,5W output power.

Weight (2.2 lb = 1 kg)                  8 kg / 17 lb 9.9 oz (17.621 lb)

Price in first year of sale:         269.00 DM
