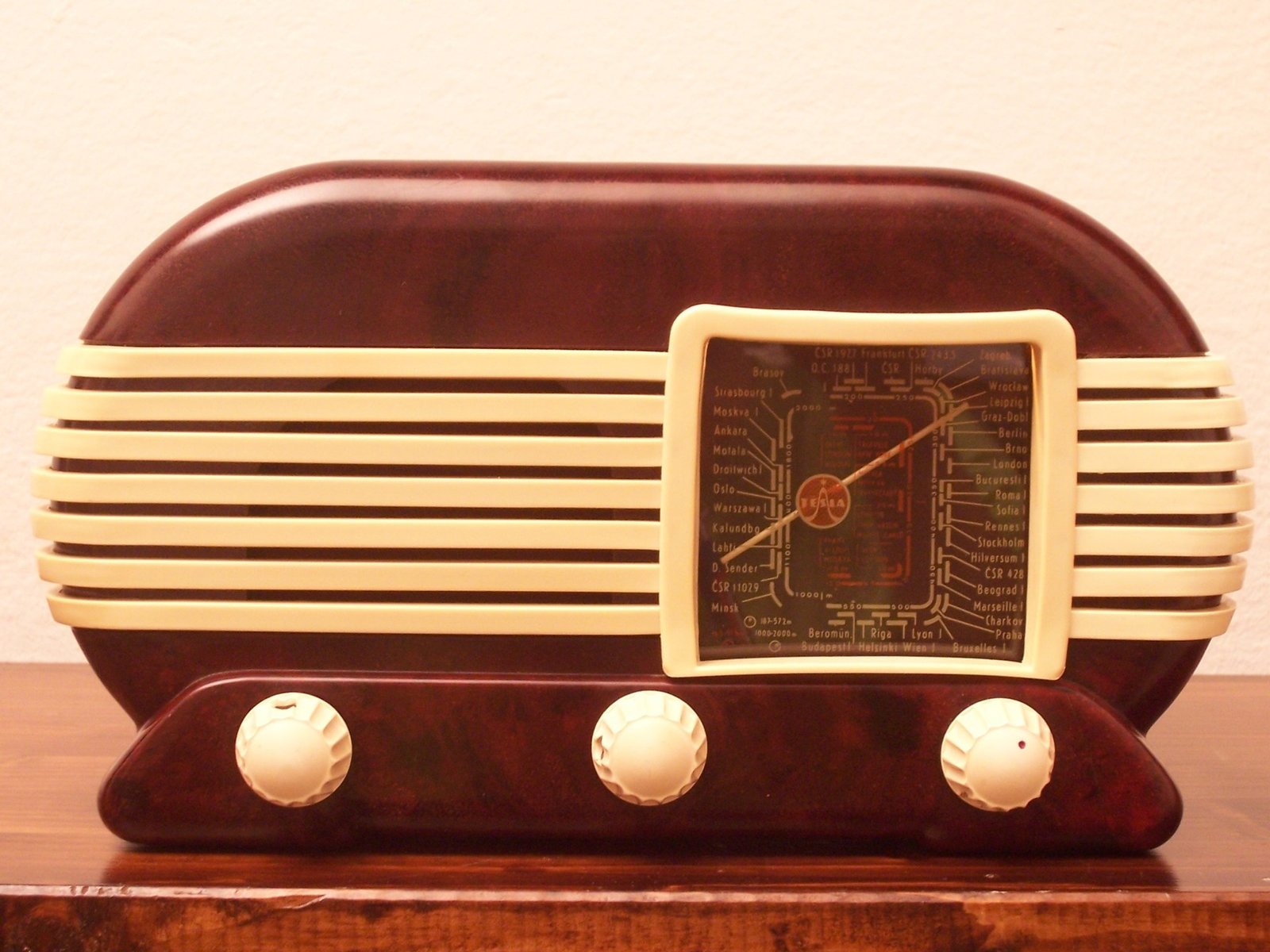

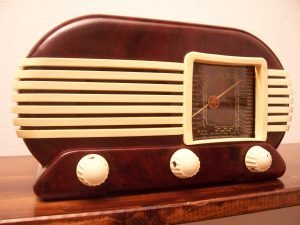

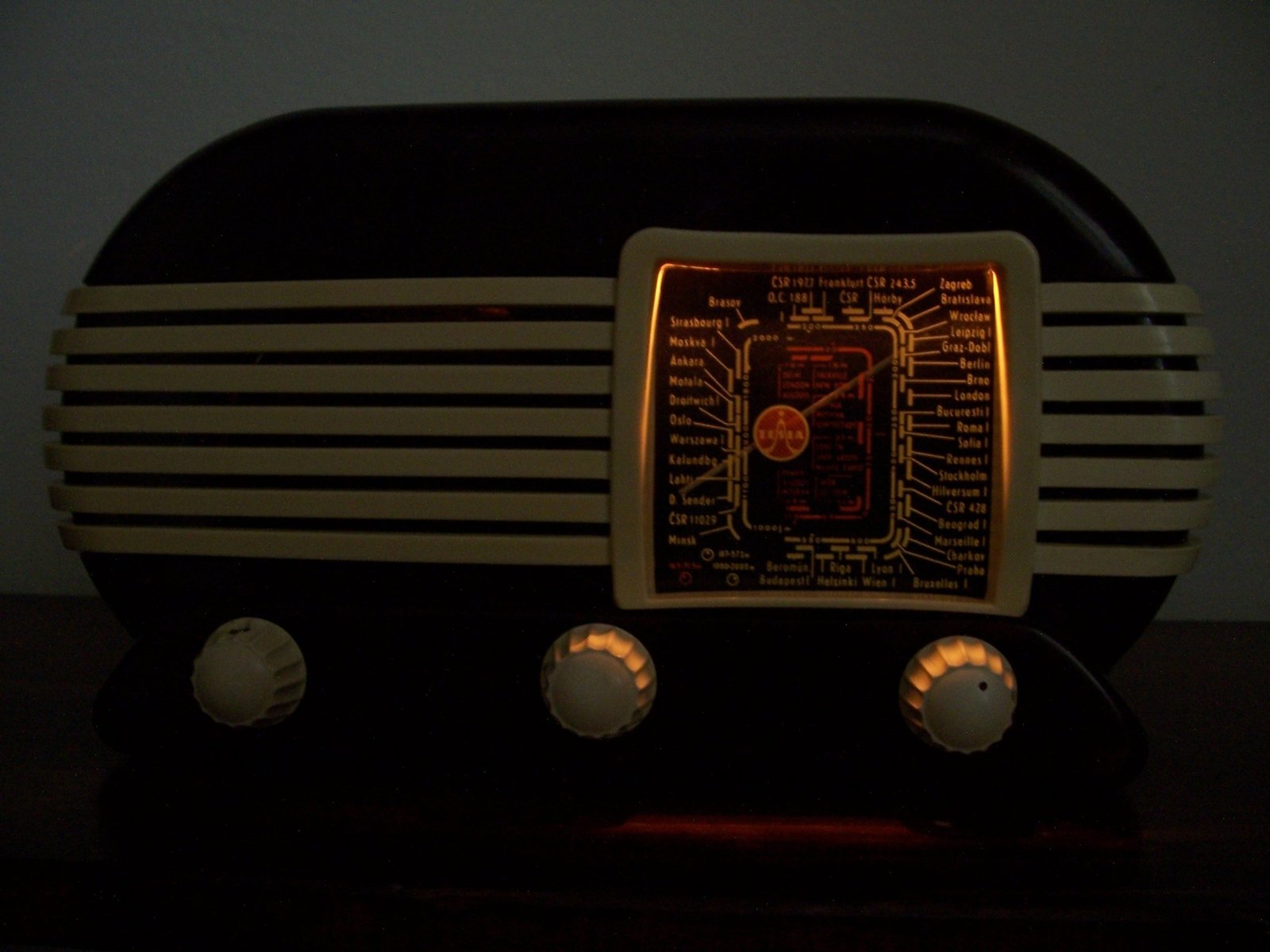

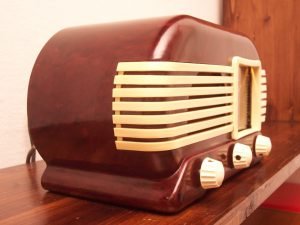

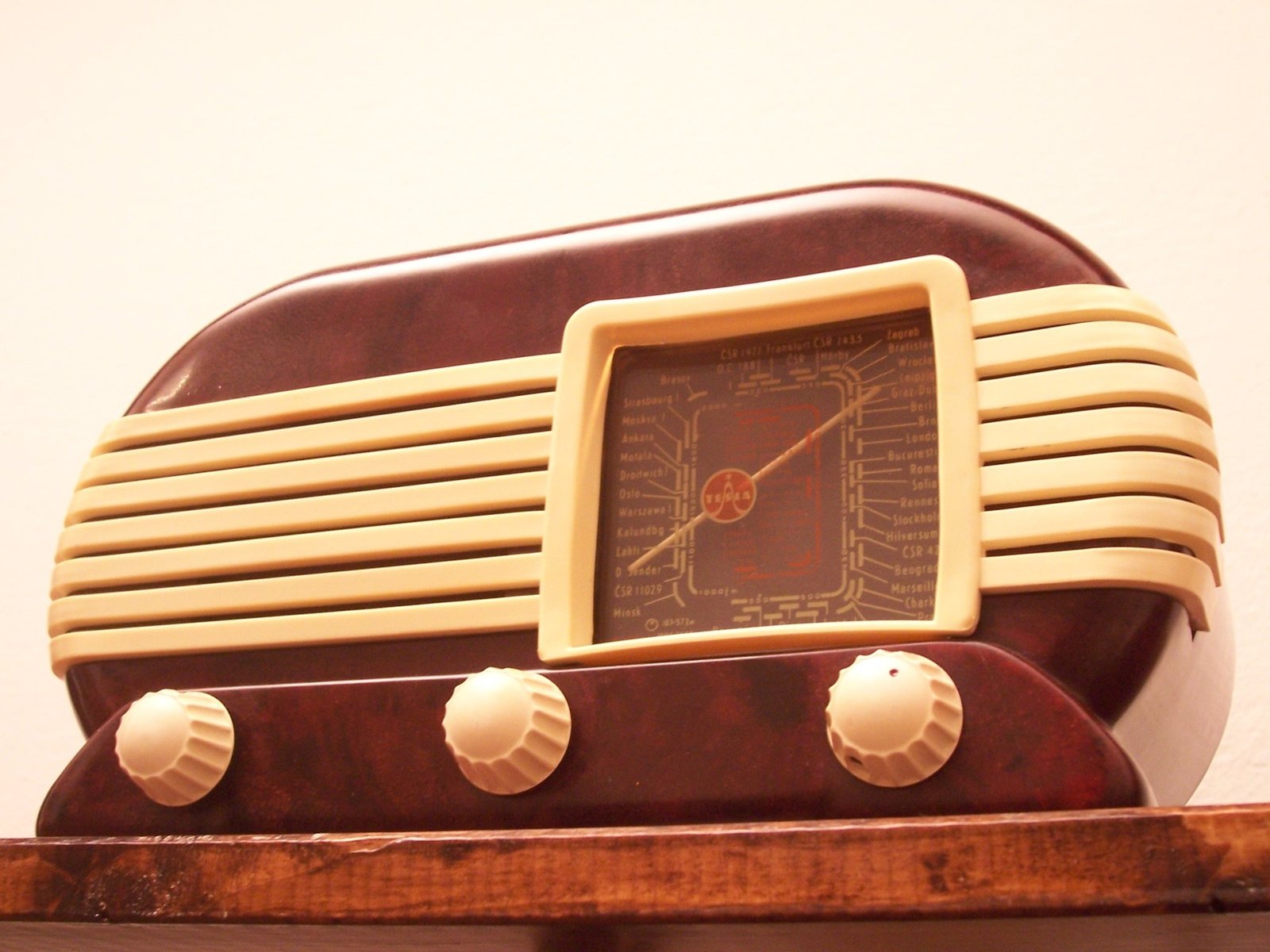

Tesla Talisman 307U

Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

Country:

Manufacturer/Brand:

Model:

Year:

Valves/Tubes:

Main Priciple:

Tuned Circuits:

Waves/Bands:

Power type and voltage:

Loudspeakers:

Power Output:

Material:

Shape:

Dimensions:

Wheight:

Price in first year of sale:

Notes:

Czechoslovakia

Tesla; Praha, Bratislava

307U

1953-1958

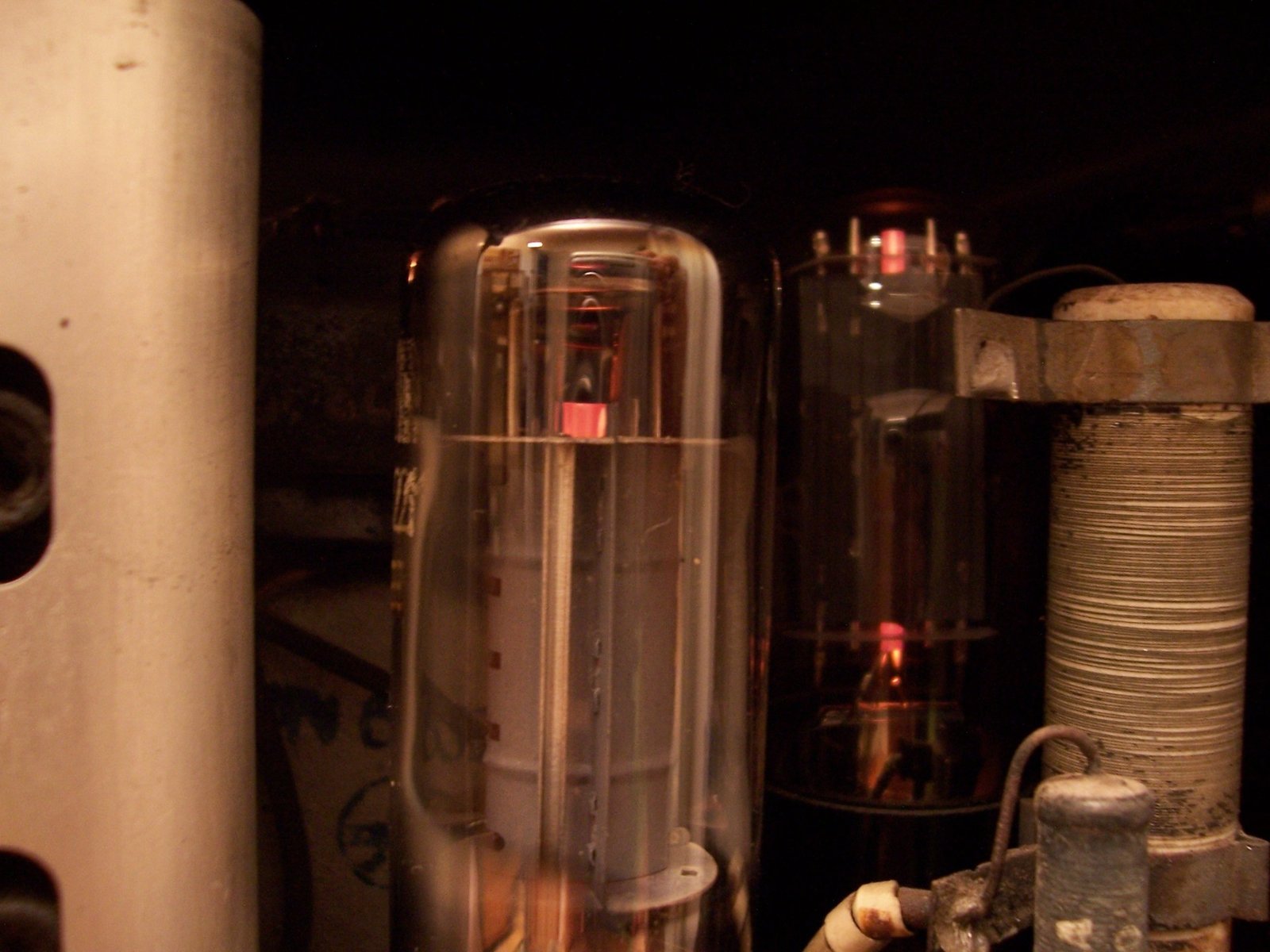

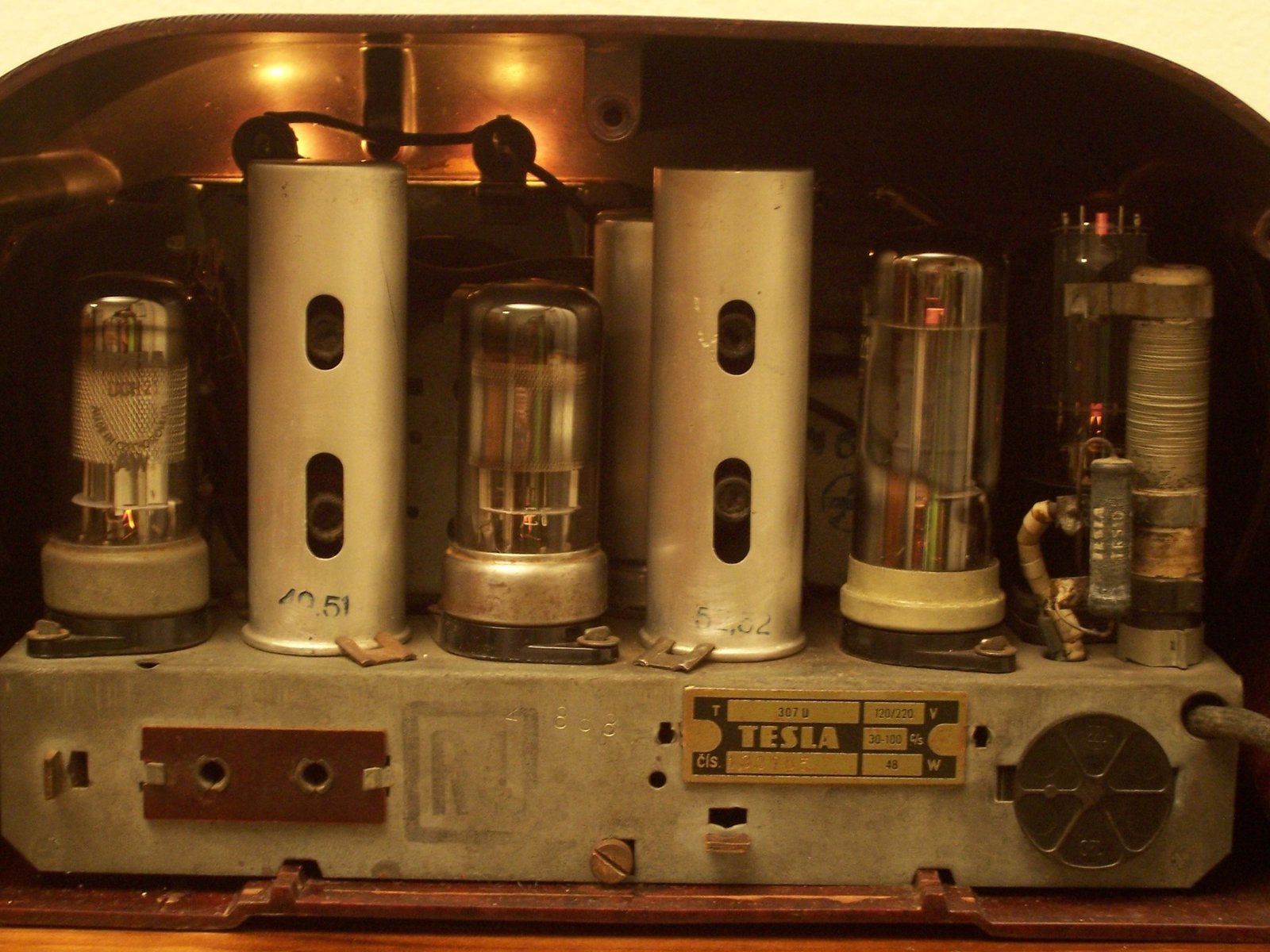

4: UCH21, UCH21, UBL21, UY1N

Super-Heterodyne (Super in general); ZF/IF 452 kHz

6 AM circuit(s)

Broadcast, Long Wave and Short Wave

AC/DC-set / 120/220 Volt

Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

1.5 Watts

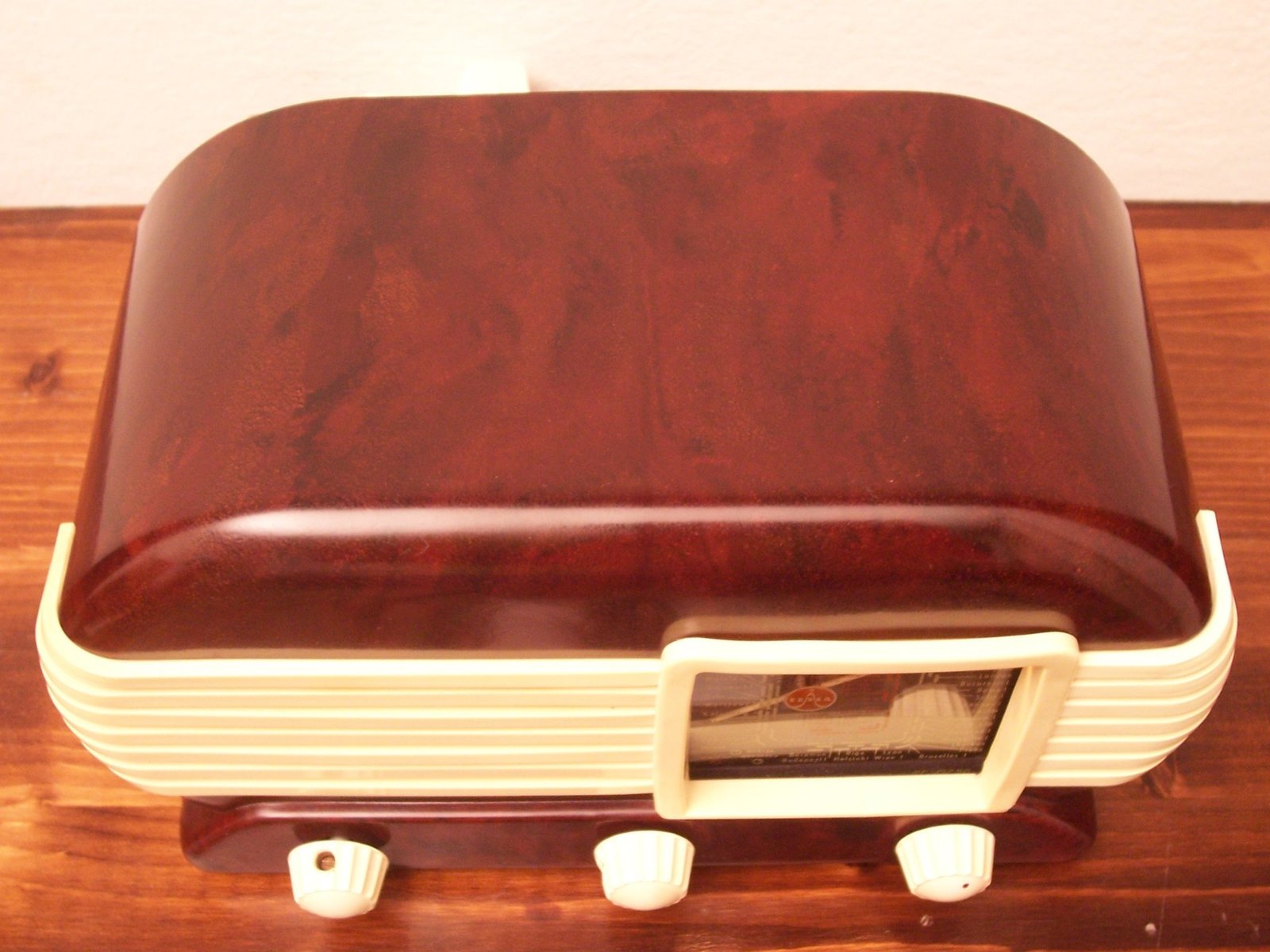

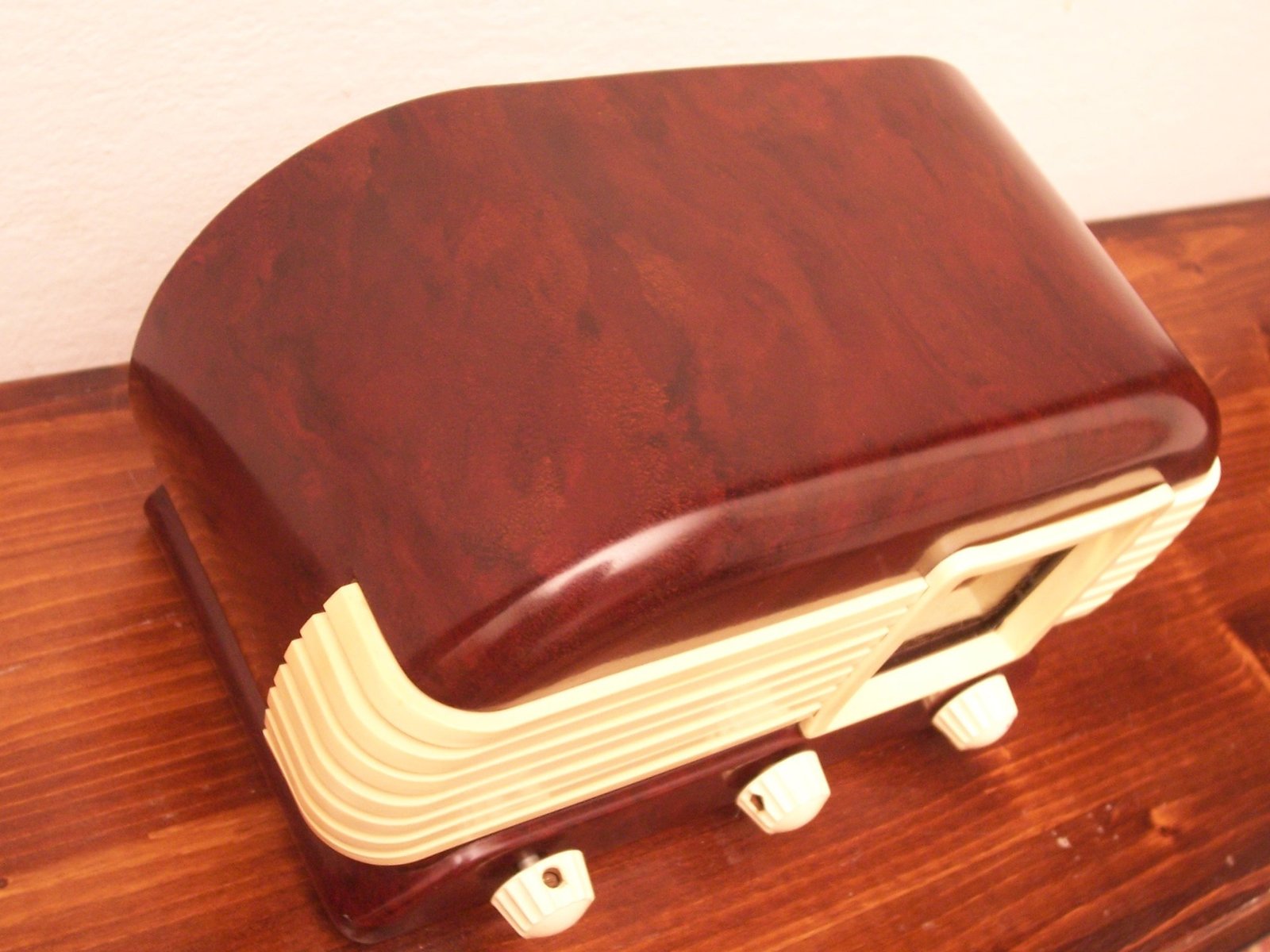

Bakelite case

Tablemodel, with any shape – general

290 x 165 x 145 mm / 11.4 x 6.5 x 5.7 inch

2.6 kg / 5 lb 11.6 oz (5.727 lb)

295.00 CZK

The Talisman in completely different Bakelite cases produced with the same chassis exists from 1951 with the 305U, then 1951 306U, followed by 307U and 308U from 1953. There are several variants in each case.
