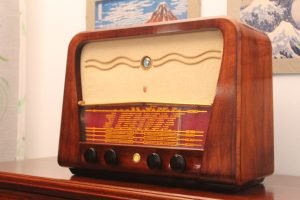

Philips Barcarole 51

Philips Barcarole 51 01
Philips Barcarole 51 02
Philips Barcarole 51 03
Philips Barcarole 51 04
Philips Barcarole 51 05
Philips Barcarole 51 06

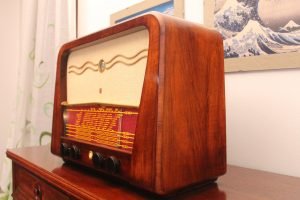

Philips Barcarole 51 07
Philips Barcarole 51 08

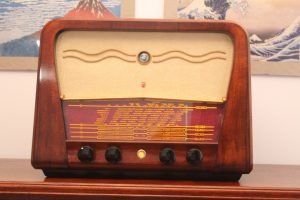

Philips Barcarole 51 09

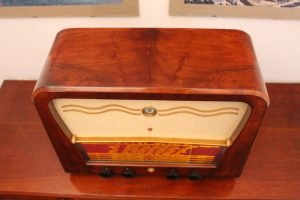

Philips Barcarole 51 10
Philips Barcarole 51 11

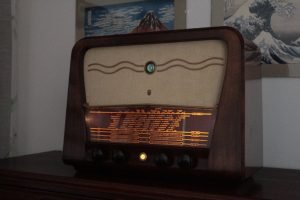

Philips Barcarole 51 12
Philips Barcarole 51 13

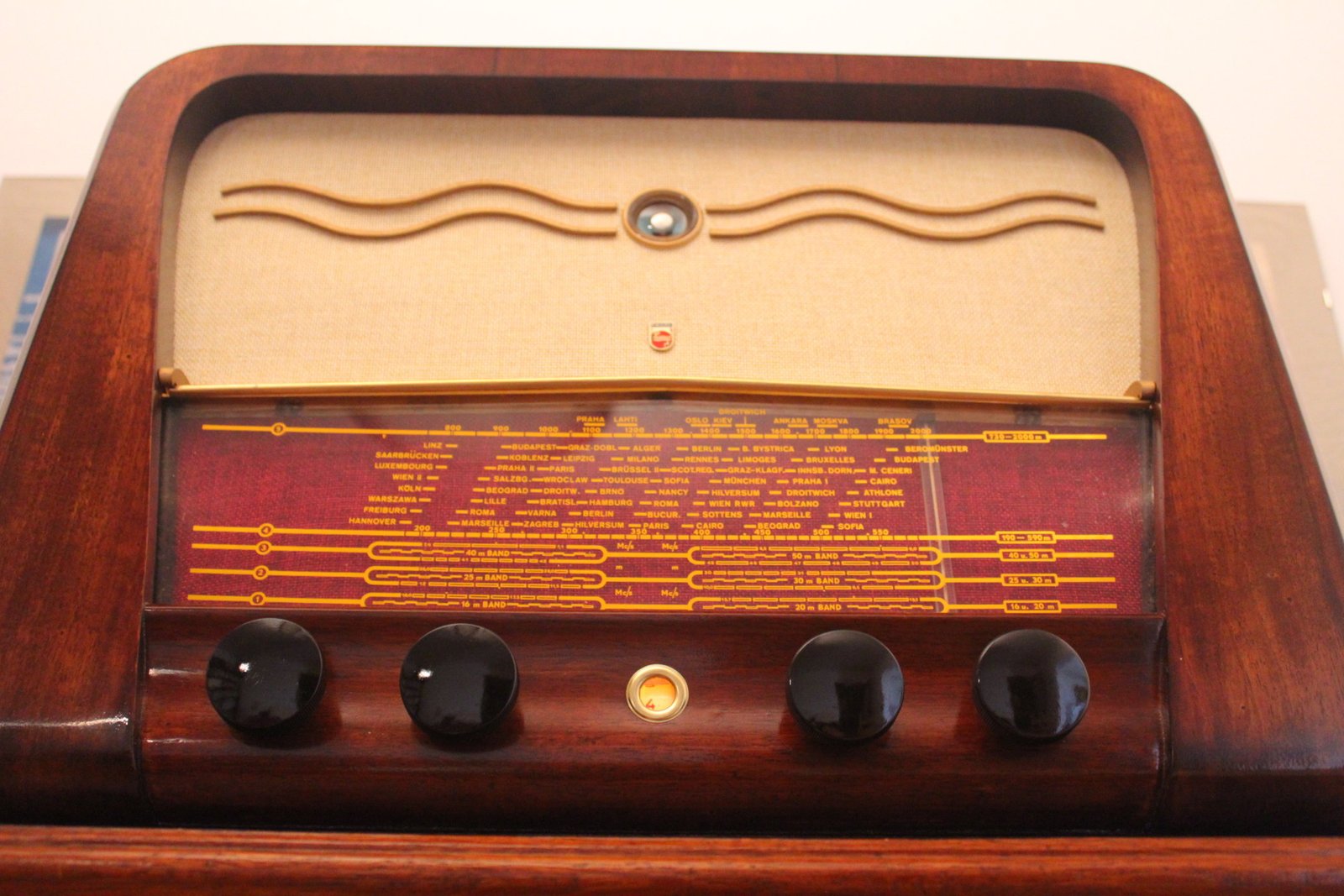

Philips Barcarole 51 14

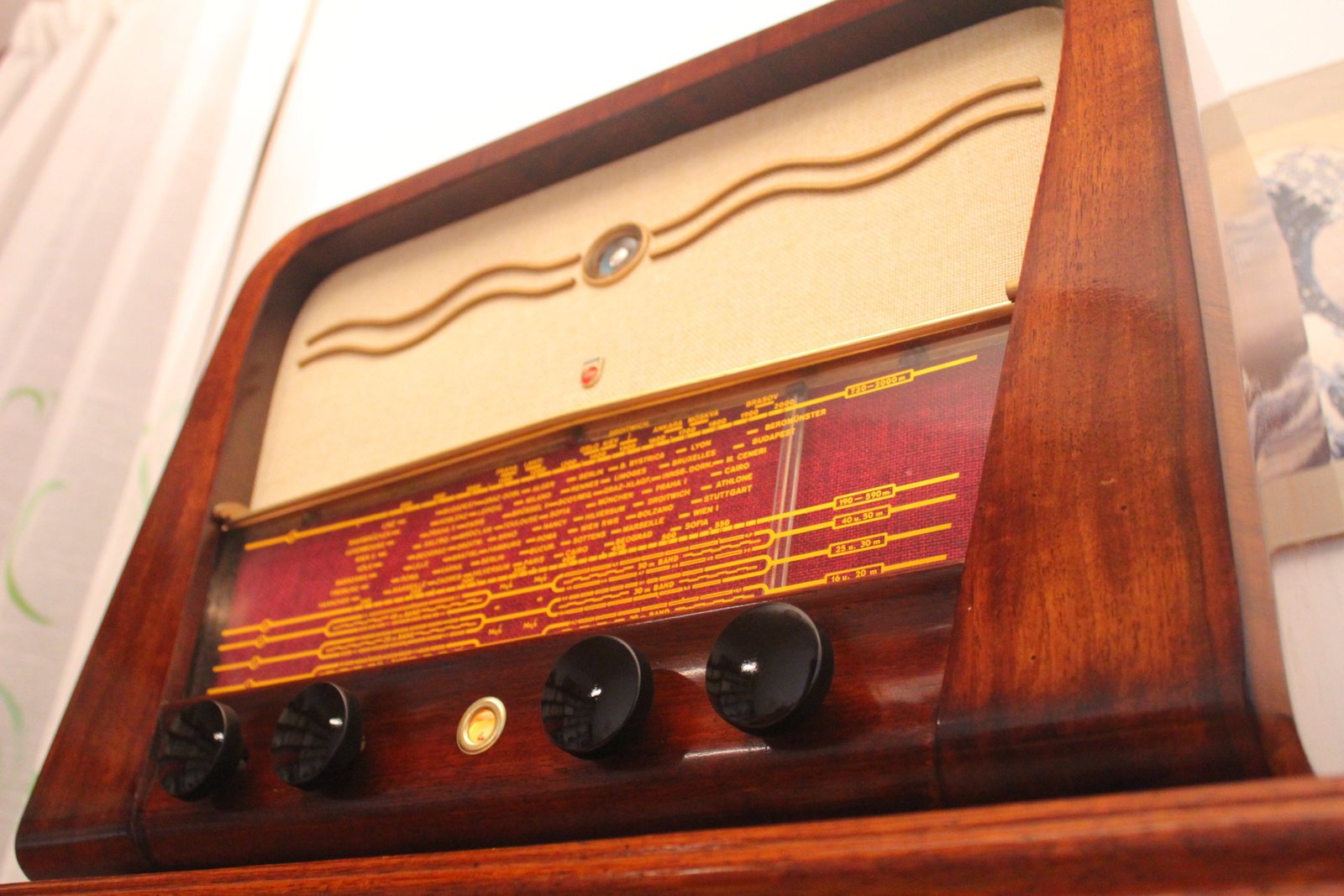

Philips Barcarole 51 15

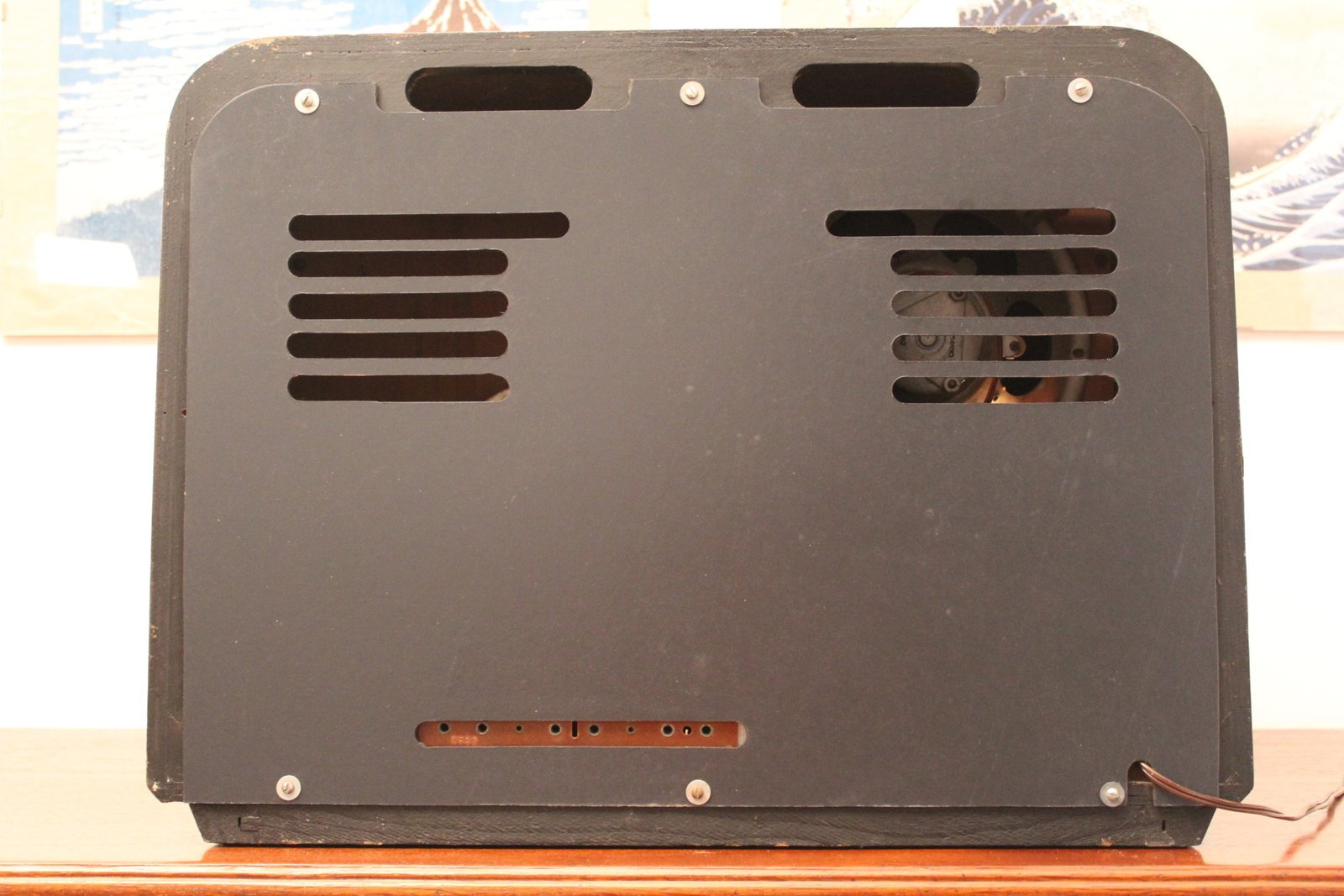

Philips Barcarole 51 16
Philips Barcarole 51 17
Philips Barcarole 51 18
Philips Barcarole 51 01 Philips Barcarole 51 02 Philips Barcarole 51 03 Philips Barcarole 51 04 Philips Barcarole 51 05 Philips Barcarole 51 06 Philips Barcarole 51 07 Philips Barcarole 51 08 Philips Barcarole 51 09 Philips Barcarole 51 10 Philips Barcarole 51 11 Philips Barcarole 51 12 Philips Barcarole 51 13 Philips Barcarole 51 14 Philips Barcarole 51 15 Philips Barcarole 51 16 Philips Barcarole 51 17 Philips Barcarole 51 18

Country:

Manufacturer/Brand:

Model:

Year:

Valves/Tubes:

Main Priciple:

Tuned Circuits:

Waves/Bands:

Power type and voltage:

Loudspeakers:

Power Output:

Material:

Shape:

Dimensions:

Wheight:

Price in first year of sale:

Notes:

Austria

Philips – Österreich

Barcarole 51 – BA601A

1950/1951

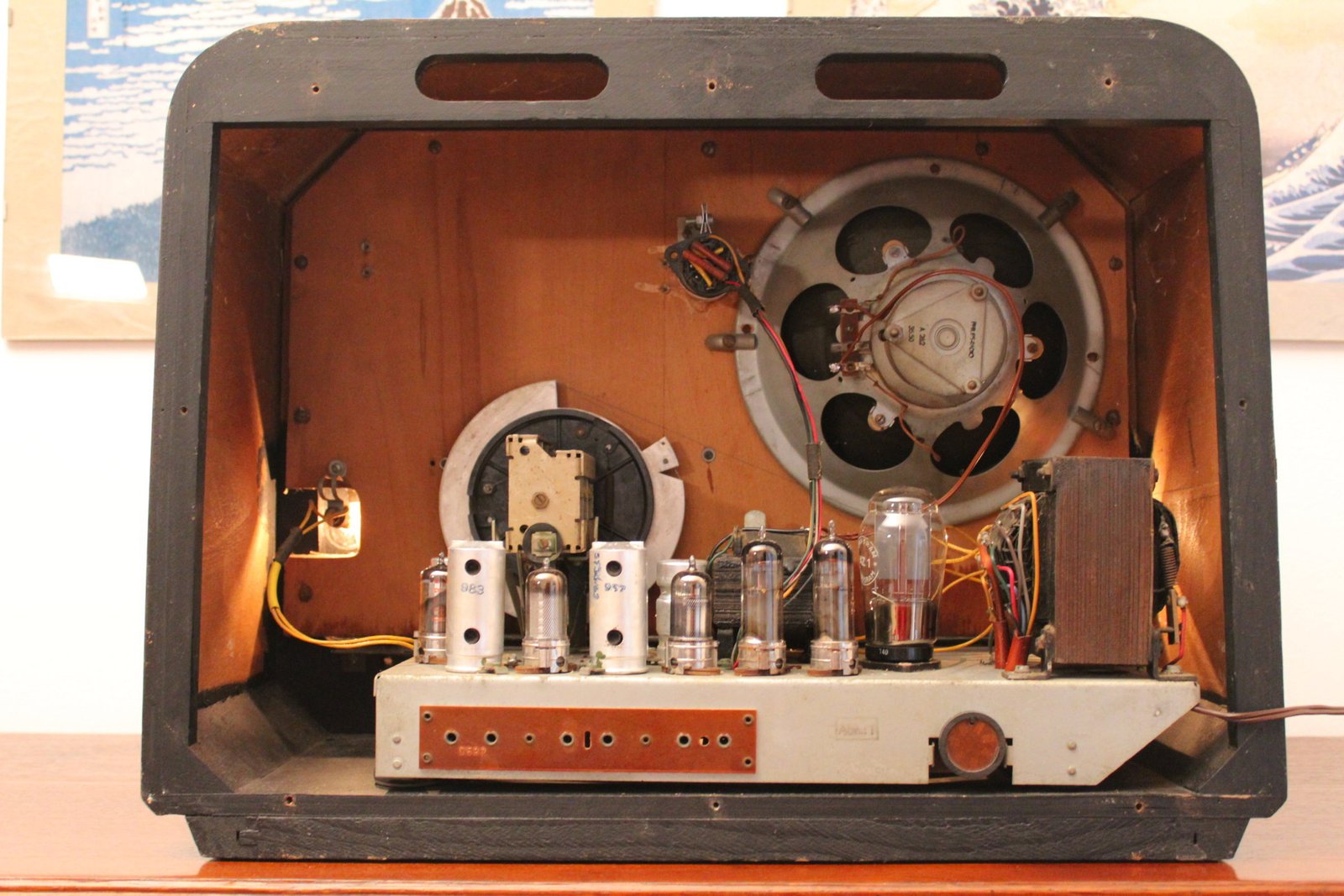

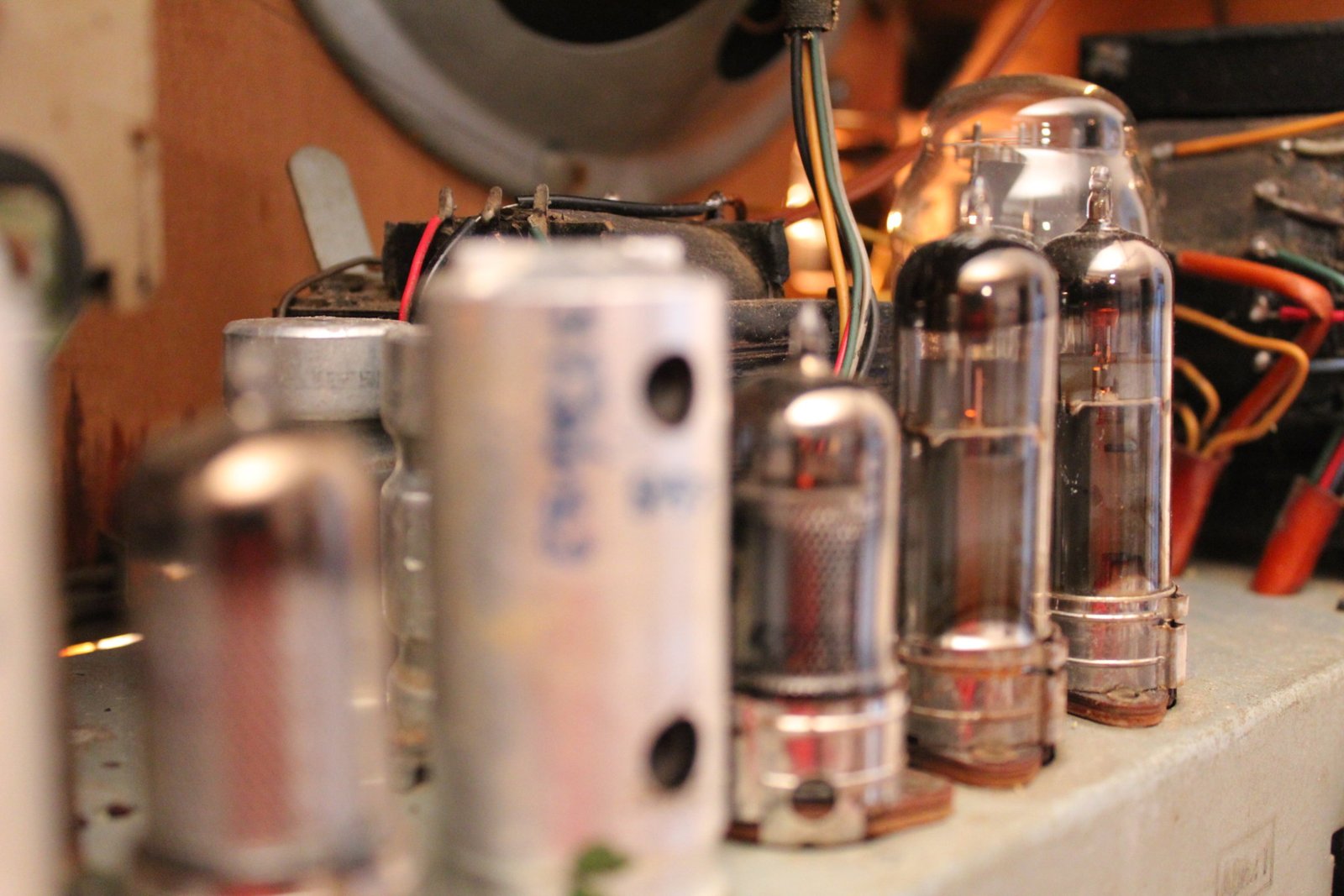

7: ECH42, EAF42, EAF42, EL41, EM34, EL41, AZ1

Super-Heterodyne (Super in general) ZF/IF 452 kHz

7 AM circuit(s)

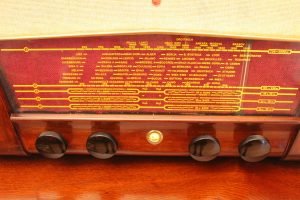

Broadcast, Long Wave and more than two Short Wave bands.

Alternating Current supply (AC) / 100; 110; 125; 150; 200; 220; 240 Volt

Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.6 cm = 8.5 inch

6 Watts

Wooden Case

Tablemodel, low profile (big size)

540 x 405 x 240 mm / 21.3 x 15.9 x 9.4 inch

14 kg / 30 lb 13.4 oz (30.837 lb)

1’980.00 ATS

Parallel type to the Horny W660A.
